Bộ chia mạng 24 cổng quang 1000Mb Switch Soltech SFC4100A

Bộ chia mạng 24 cổng quang 1000Mb Switch Soltech SFC4100A

  • 1Gbps TP 4-Ports + 1Gbps SFP 24-Slots + 10Gbps SFP 4-Slots, TP/SFP Combo(1~4)
SFC4100A_thum_02
SFC4100A_thum_03
  • TP Auto-Negotiation, Auto MDI-X
  • Web based Management, SNMP Management
  • IGMP Snooping
  • IEEE 802.1p QoS, VoIP QoS, Q-in-Q
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • IEEE 802.1x User Authentication for Network Security
  • Port Mirroring for Analysis of Network Errors and Traffics
  • IEEE 802.1d & IEEE 802.1w Rapid Spanning Tree
  • ITU-T G.8032 ERPS

    Description

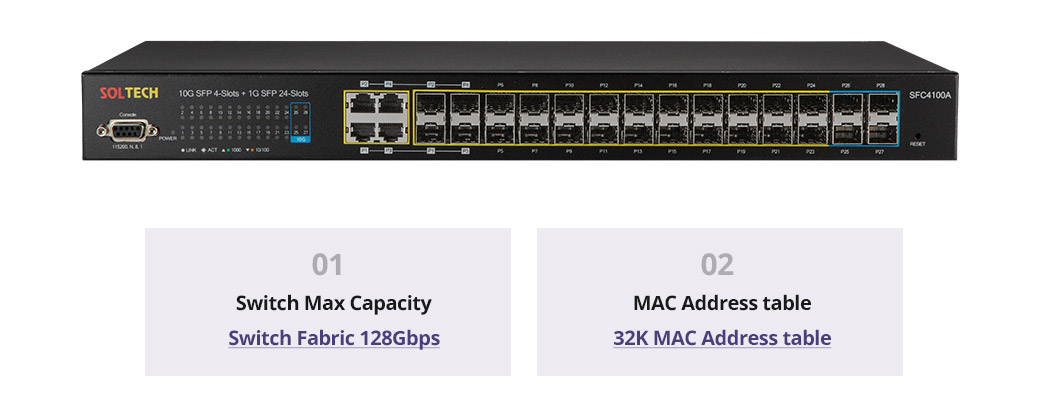

    Management Support Web-based management

    TP 4-port SFP 28-slot Ethernet switch hub enables medium and small network deployment and supports web-based management to help customers manage their networks comfortably

    10/100/1000M TP 4 Ports SFP 28 Slots Multi Slot Switch

    SFC4100A supports 4 SFP slots up to 10Gbps + 24 SFP slots up to 1Gbps including 4 TP ports supporting 1Gbps for a seamless network experience

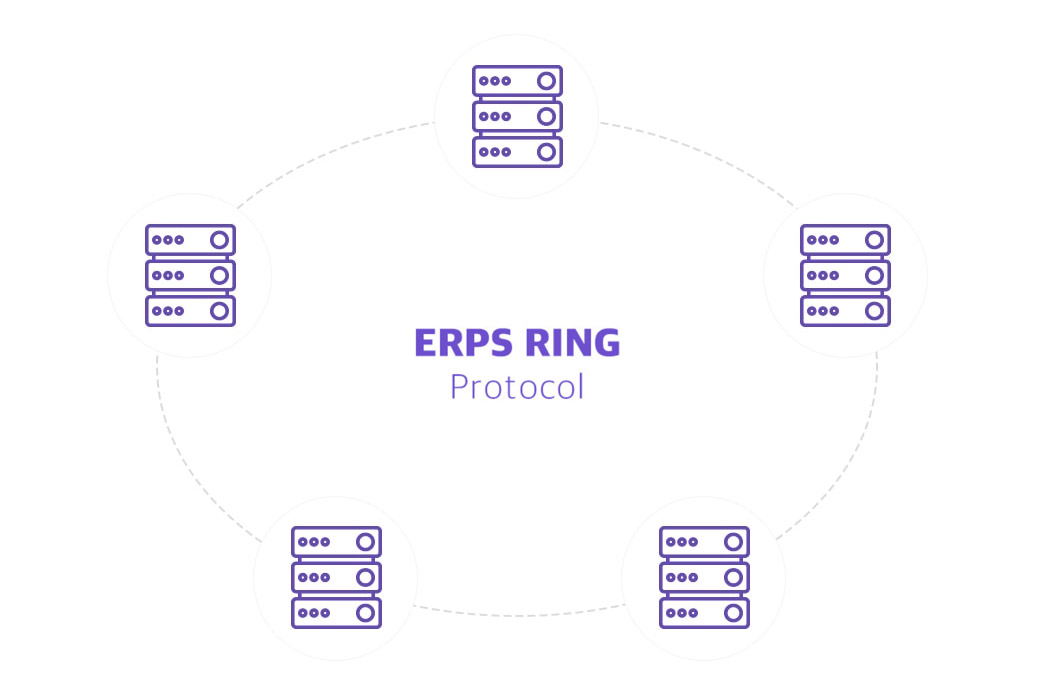

    Stable process ERPS RING Network

    Standard ERPS ring support without hop count constraints provides reliable service by recovering traffic through bypass with protection cut-off technology in the event of node/link failure

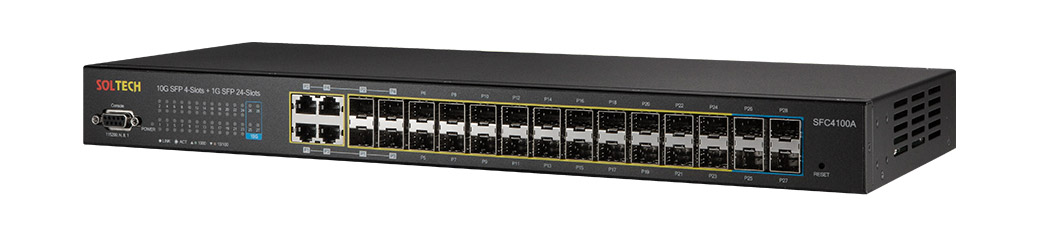

    Product Details

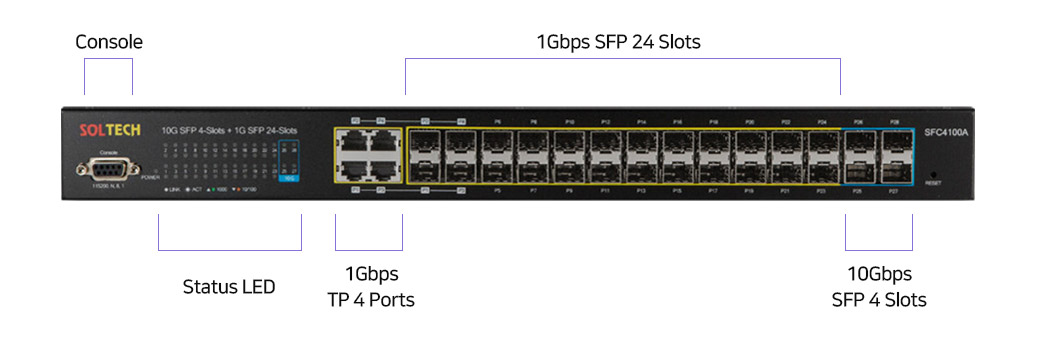

    Construction

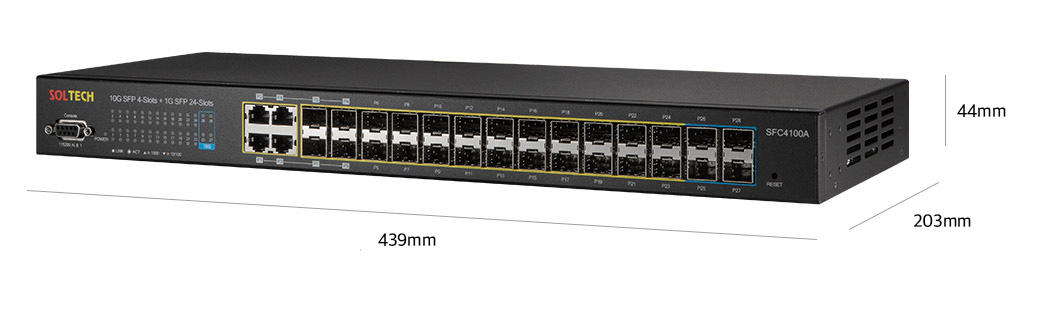

    Dimensions

    Compare Product Lines



    SFC4000C SFC4100A SFC4100B SFC4200T SFC4200HP SFC4254T SFC4500A SFC4500A(DC)
    RJ45Port 8 TP(1Gbps) 4 TP(1Gbps) 4 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps) 48 TP(1Gbps) 4 TP(1Gbps) 4 TP(1Gbps)
    PoE Port – – – – 24 PoE(af/at) – – –
    Combo Port 8 Port 4 Port(1~4) 4 Port(1~4) – – – 4 Port(1~4) 4 Port(1~4)
    SFP/SFP+ Port 24 SFP(1Gbps)
    4 SFP(10Gbps)    		 24 SFP(1Gbps)
    4 SFP(10Gbps)    		 16 SFP(1Gbps)
    8 SFP(2.5Gbps)
    2 SFP(10Gbps)    		 4 SFP(10Gbps) 4 SFP(10Gbps) 6 SFP(10Gbps) 24 SFP(1Gbps)
    4 SFP(10Gbps)    		 24 SFP(1Gbps)
    4 SFP(10Gbps)
    Switch Fabric 144Gbps 128Gbps 112Gbps 128Gbps 128Gbps 216Gbps 128Gbps 128Gbps
    Throughtput 107.1Mpps 95.2Mpps 83.3Mpps 95.2Mpps 95.2Mpps 160.7Mpps 95.2Mpps 95.2Mpps
    Memory(RAM) 512MB 128MB 128MB 128MB 512MB 256MB 128MB 128MB
    Flash Memory 16MB 16MB 16MB 32MB 32MB 32MB 16MB 16MB
    MAC Table 32K 32K 32K 16K 16K 16K 32K 32K
    Jumbo Frame 9K 4.7K 4.7K 9K 12K 9K 4.7K 4.7K
    Operating Temperature 0 ~ 50℃ 0 ~ 60℃ 0 ~ 60℃ -20 ~ 65℃ 0 ~ 45℃ -20 ~ 65℃ 0 ~ 60℃ 0 ~ 60℃
    Power Input AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC100~240V, DC48V
    Power Consumption AC 38W AC 33.7W AC 32.6W AC 35W AC 459.9W AC 40W AC 33.7W AC33.7W, DC35W
    PoE Capacity – – – – PoE Max. 400W – – –
    Dual Power – – – – – – –
    Installation Method Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount
    Dimension (WxDxH) 440 x 280 x 44 (mm) 439 x 203 x 44 (mm) 439 x 203 x 44 (mm) 440 x 180 x 44 (mm) 440 x 330 x 44 (mm) 440 x 280 x 44 (mm) 439 x 203 x 44 (mm) 439 x 203 x 44 (mm)
    STP/RSTP/MSTP
    802.1Q VLAN
    IEEE 802.1
    IGMP Snooping
    ERPS, S-RING

Thông số kỹ thuật

Standards IEEE 802.3 10Base-T
IEEE 802.3u/x/z 100Base-TX/FX, Gigabit SX/LX
IEEE 802.3ad Port trunk with LACP
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.3ae 10Gbps Ethernet
RJ45 Ports 4 Ports 10/100/1000Mbps TP (Combo Port 1~4)
Auto-Negotiation
Auto MDI-X
Fiber Ports 24-SFP Slots, 1000Mbps-SX/LX SFP
100Mbps-FX SFP, Speed auto detection
10G 4-SFP Slots, 10G SFP+
LED Indicators System : Power
Ports : 10/100/1000Mbps Link/Act/Speed, SFP Link
Back Plane Switching Fabric 128Gbps, 32K MAC Address table, Jumbo Frame 4.7Kbytes
Layer 2 Management Interfaces : Console, Telnet, Web Browser, SNMPv1, v2c, SNMP v3
VLAN : 802.1Q Tagged Based VLAN, Port VLAN, Q-in-Q, Private VLAN Edge (PVE)
Spanning Tree : IEEE 802.1D, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s MSTP
IEEE 802.3ad LACP / Static Trunk, IGMP (v1/v2/v3) Snooping
IP-Based ACL / MAC-Based ACL, 802.1Q VLAN tag QoS
Temperature Operating : 0℃ ~ 60℃
Storage : – 20℃ ~ 80℃
Humidity 10 ~ 95% (Non-condensing)
Input Voltage 100 ~ 240VAC, 50/60Hz
Dimension 440mm(W) x 203mm(D) x 44mm(H), 1U
