1. Product Description
Video conferencing camera for small meeting rooms
Unbox and connect to immediately start experiencing next-generation video collaboration for your small conference room.
Cover everyone in the meeting room.
Extremely wide 120° FOV with multi-coated lens helps bring outstanding quality to your video conferencing meeting room. No need to arrange seating! Covers all participants and notes in the conference room.
Premium video quality
CAM340+ provides an online conference room experience with 4K image quality at 30fps. Capable of 4X zoom like a traditional optical camera, the CAM340+ can zoom and move around without losing image quality.

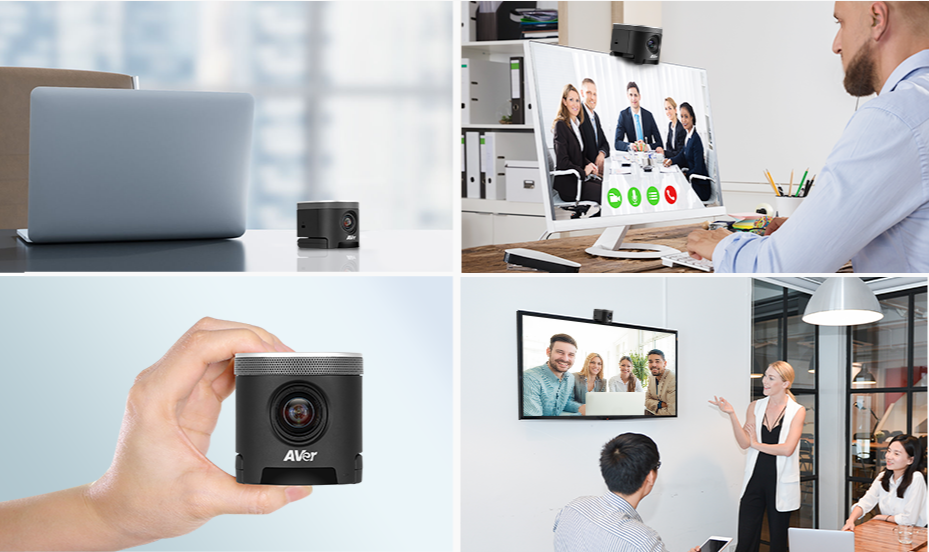

Feel free to collaborate anywhere
Ultimate utility, CAM340+ is a video conferencing solution anywhere. With a highly durable, easy-to-carry chassis and flexible mounting bracket, the CAM340+ gives users the flexibility to turn any room into an online conference meeting room.
2. Specifications
Camera
-
- Super crystal clear images support up to 4K
- Frame rate: 4K 30fps; 1080p , 720p , 960×540, 848×480, 800×448, 640×480, 640×360, 424×240, 320×240, 320×180 at up to 60fps
- Extremely wide viewing angle of 120°
- Lens iris, focus, zoom: fixed
- Automatic light balance, camera editing on PTZApp software
- Minimum distance: 80cm
- Backlight compensation technology and 2D noise reduction technology to optimize light balance in different conditions
- Screw holes for standard stand mounting
Microphone
-
- 1 uni-directional microphones
- Frequency response: 100~12K Hz
- Sensitivity: -37dB
Connectivity
-
- USB Type C connector
- Reset button
- DC jack for power adapter (for USB2.0 connection)
Zoom, move horizontally and vertically
-
- Thu phóng: lên đến 4X sử dụng 4K sensor để đạt hiệu quả tối đa (không hỗ trợ ở chế độ 4K hoặc 60 fps)
- Di chuyển ngang và dọc: khi thu phóng sử dụng 4K sensor để đạt hiệu quả tối đa
Video Format
-
- YUV, YUY2, MJPEG
Control
-
- IR remote control (optional accessory, compatible with CAM540)
- UVC / plug-and play
- PTZApp
USB
-
- 2.0, 3.1 Gen1 type C
- UVC (USB Video Class) 1.1
Security and Mount
-
- Built-in TV mount (above TV, up to 46mm deep)
- Kensington slot
- 1/4″ tripod mounting screw
Power Supply
-
- Điện năng tiêu thụ: USB3.0 hỗ trợ lên 4K : 5V/0.9A;
- USB2.0 hỗ trợ lên 2K: 5V/0.5A
Environmental Data
-
- Operation temperature: 0°C ~ 40°C
- Operation humidity: 20% ~ 80%
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 20% ~ 80%
Dimensions
-
- Kích thước đóng gói: 138 x 138 x 149mm
- Trọng lượng đóng gói: 0.622kg
- Kích thước camera: 60 x 60 x 75mm
- Trọng lượng camera: 0.251kg
Optional Accessories
-
- Wall mount
- Remote control (compatible with CAM540)
- Power adapter (for USB 2.0)
System Requirements
-
- Windows® 7/10/11
- MacOS X 10.14 or later
- Chromebox 3 version 94.0.4606.114 or later
Hardware Specs
-
- 2.4GHz Intel@ Core 2 Duo processor
- 2GB RAM or more
- USB 2.0 port and above (USB 3.0 required for 4K or 60fps)
Warranty
-
- Camera: 3 năm*
- Các phụ kiện: 1 năm
Compatible applications
-
- Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Vidyo, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, vMix, WebRTC, Wirecast, XSplit
