Camera Tracking lớp học DL30

Camera

• • Image Sensor : 1/2.8′ 1080p Low Lux CMOS
  • Effective Picture Elements : 2 Megapixels
  • Output Resolutions : 1080p/60 (IP Streaming & USB)
  • Minimum Illumination : 0.5 Lux (IRE50, F2.0, 30fps)
  • S/N Ratio : ≥ 50 dB
  • Gain : Auto, Manual
  • TV Lines : 800 (Center/Wide)
  • Shutter Speed : 1/4 to 1/10,000 sec (60 Hz) ; 1/3 to 1/10,000 sec (50 Hz)
  • Exposure Control : Auto, Manual, WDR
  • WDR : Yes
  • White Balance : Auto, Manual
  • Optical Zoom :12X
  • Digital Zoom : 2X
  • Viewing Angles : DFOV : 84.1° (Wide) to 7.8° (Tele) ; HFOV : 76.5° (Wide) to 6.8° (Tele) ; VFOV : 47.3° (Wide) to 3.8° (Tele)
  • Focal length : f = 3.9 mm (Wide) to 46.8 mm (Tele)
  • Aperture (Iris) : F = 1.6 (Wide) to 2.8 (Tele)
  • Minimum Working Distance : 0.3 m (Wide), 1.5 m (Tele)
  • Pan/Tilt Angles : Pan : ±170°, Tilt : ±90°
  • Pan/Tilt Speed (Manual) : Pan: 1° to 90°/sec ; Tilt: 7.85° to 45°/sec
  • Preset Speed : Pan : 120° / sec, Tilt : 110.84° / sec
  • Preset Positions : 10 (IR), 256 (IP & USB)
  • Camera Control – Interfaces : IP, USB
  • Camera Control – Protocols : VISCA (IP), CGI (IP), USB
  • Image Processing : Noise Reduction (2D/3D), Flip, Mirror, WDR
  • Power Frequencies : 50 Hz, 60 Hz

AI Auto Tracking Functions

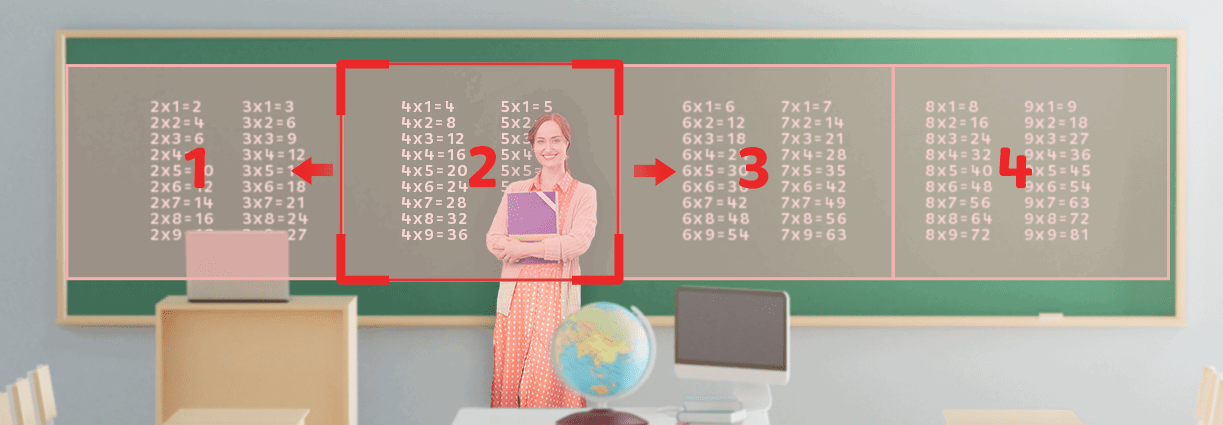

• • Tracking Modes : Presenter Mode, Zone Mode, Hybrid Mode

Privacy Protection Mechanisms

• • Protection Modes : Privacy Mode, Sleep Mode

Audio

• • Channels : 2ch (Stereo)
  • Codecs :  AAC, PCM
  • Sample Rates : AAC (48, 32, 16, 8 KHz), PCM (48 KHz)

Interface

• • Video Outputs : IP, USB
  • Audio Outputs : IP, USB
  • Audio Inputs : Line in, Mic in

* Thông số kỹ thuật có thể thay đổi tùy theo quốc gia và có thể thay đổi mà không cần báo trước.

 General

• • Power Requirement : AC 100 – 240V to DC 12V/2A
  • Power Consumption :12W
  • PoE+ : PoE+
  • Dimensions (W x H x D) : 158.8 x 200.0 x 162.2 mm
  • Net Weight : 1.62 (±0.1) kg
  • Application : Indoor
  • Tally Lamp : N/A
  • Security : Kensington Slot
  • Remote Control : Infrared
  • Operating Conditions :Temperature: 0°C to 40°C ; Humidity: 20% to 80%
  • Storage Conditions : Temperature: -20°C to 60°C ; Humidity: 20% to 95%

IP Streaming

• • Resolution : 1080p 60fps
  • Network Video Compress Formats : H.264, MJPEG (Web Page)
  • Network Audio Compression Formats : AAC-LC
  • Sample Rates : 48, 32, 16, 8 KHz
  • Maximum Frame Rate : 1080p 60fps
  • Bit-Rate Control Modes : VBR, CBR
  • Bit-Rate Range Setting : 512 Kbps to 32 Mbps
  • Network Interface : 10/100 Base-T
  • Multi-Stream Capability :2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.) ; 3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)
  • Network Protocols : IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP,
  • VISCA over IP
  • NDI®
    |HX Capability : N/A

USB

• • Connector : USB 3.1 Gen 1 Type-B
  • Video Formats : MJPEG, YUY2
  • Maximum Video Resolution : 1080p
  • USB Video Class (UVC) : UVC 1.1
  • USB Audio Class (UAC) : UAC 1.0

Web UI

• • Connector : USB 3.1 Gen 1 Type-B
  • Video Formats : MJPEG, YUY2
  • Maximum Video Resolution : 1080p
  • USB Video Class (UVC) : UVC 1.1
  • USB Audio Class (UAC) :  UAC 1.0

Software Tools

• • IP Search and Configuration Tool : Supports Windows® 7 or later
  • PTZ Management : Supports Windows® 7 or later
  • PTZ Control Panel : Supports iOS & iPadOS® 9 or later
  • OBS Plugin for PTZ Cameras : Supports Windows® 8 or later, macOS® 10.13 or later
  • CaptureShare : Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

• • Camera : 3 Years
  • Accessories : 1 Year
  • Package Contents : Camera ; Remote Control ; Power Adapter ; Power Cord ; USB Cable ; Cable Ties (x3) ; Cable Fixing Plate ; M2 x 4mm Screws (x2) ; 1/4′-20L 7.5mm Screw (x1) ; Quick Start Guide
  • Optional Accessories :[object Object]
