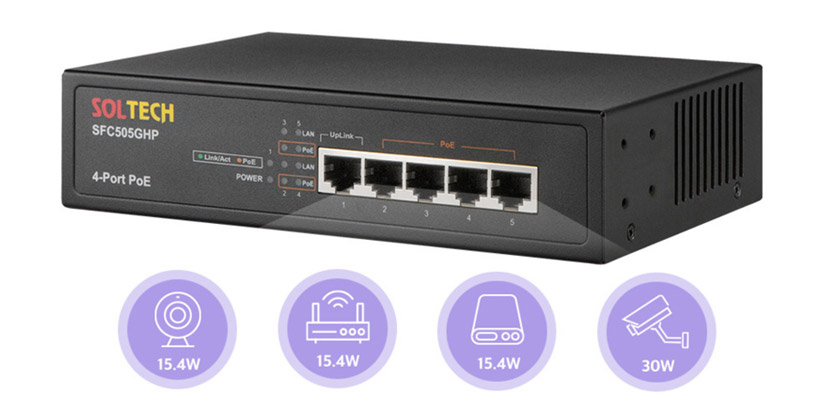

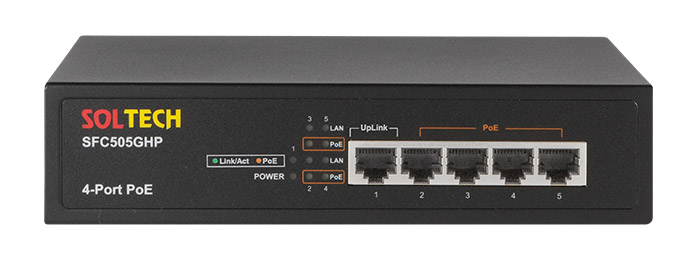

SFC505GHP is an Unmanaged POE Switch which transfers data and power together by UTP, available to connect CCTV,AP, Internet Modem without separate power constructionwireless router, and CCTV.
SFC505GHP supports 802.3at PoE total of 60 Watts of power.Reliable power supply for long distance is possible.

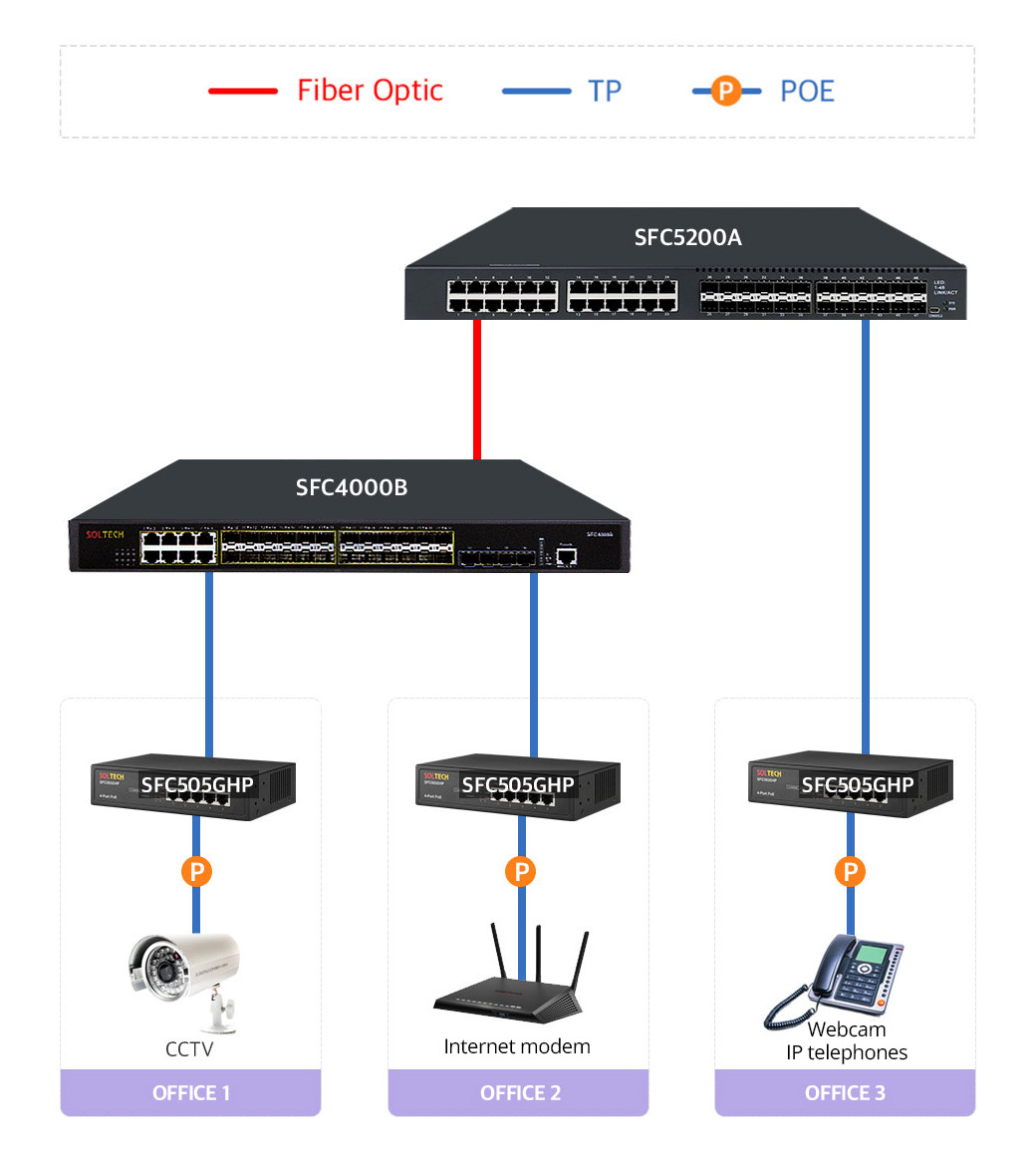

Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

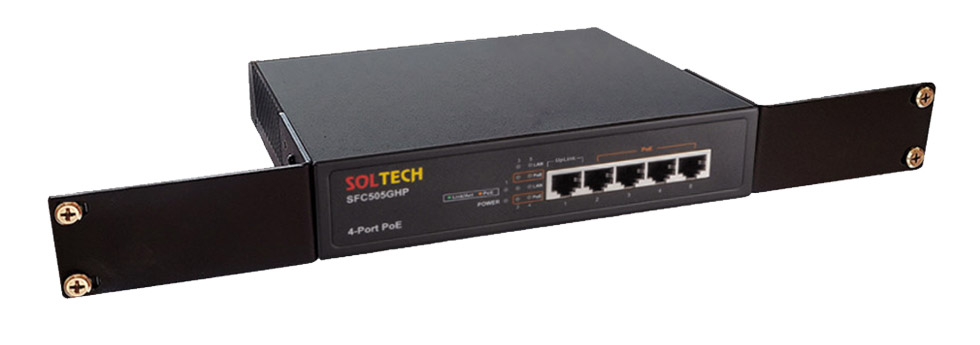

*bracket is not included in the offer
SFC505GHP | SFC510HP | SFC516HP | SFC524HP | |
---|---|---|---|---|
RJ45Port | 5 TP(1Gbps) | 10 TP(1Gbps) | 16 TP(1Gbps) | 24 TP(1Gbps) |
PoE Port | 4 PoE(af/at) | 8 PoE(af/at) | 16 PoE(af/at) | 24 PoE(af/at) |
SFP/SFP+ Port | – | – | 2 SFP(1Gbps) | 2 SFP(1Gbps) |
Switch Fabric | 10Gbps | 20Gbps | 36Gbps | 52Gbps |
Throughtput | 7.44Mpps | 14.8Mpps | 26Mpps | 38.6Mpps |
MAC Table | 2K | 4K | 8K | 8K |
Jumbo Frame | 9K | 9K | 9K | 9K |
Operating Temperature | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ |
Power Input | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V |
Power Consumption | AC 63.5W | AC 128.8W | AC 270.2W | AC 391W |
PoE Capacity | PoE Max. 60W | PoE Max. 125W | PoE Max. 260W | PoE Max. 380W |
Dual Power | – | – | – | – |
Installation Method | Rack Mount | Rack Mount | Rack Mount | Rack Mount |
Dimension (WxDxH) | 185.5 x 123 x 44 (mm) | 280 x 180 x 44 (mm) | 440 x 205 x 44 (mm) | 440 x 207 x 45 (mm) |
Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3af, IEEE 802.3at |
---|---|

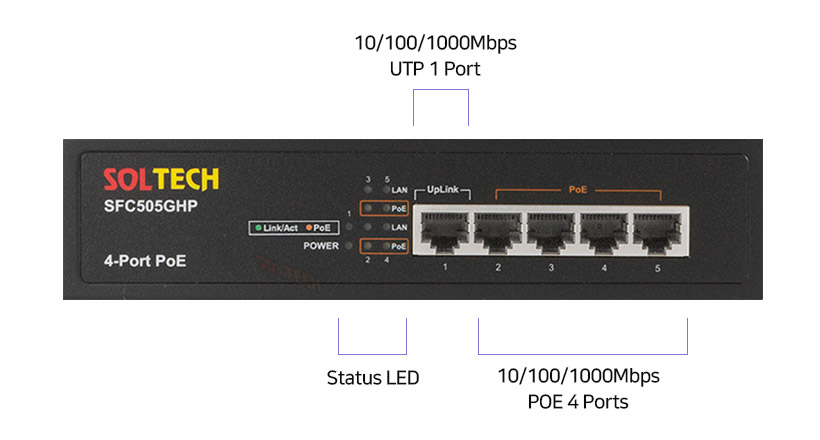

RJ45 Ports | 10/100/1000Mbps PoE 4-Port + 10/100/1000Mbps TP 1-Port (Uplink) Auto-Negotiation Auto MDI-X TP/STP Cat. 3,4,5 Cable EIA/TIA-568 100-ohm (100m) |
LED display | Power, FD, Link/Act, Speed, PoE |
PoE (Power over Ethernet) | PoE Power Budget : Max. 60Watt Number of PD@ 15.4W/4Port Number of PD@ 30.8W/2Port |
Backplane | 26Gbps |
MAC Address | Switch Fabric 10Gbps 2K Mac Address Table Jumbo Frame 9Kbyte |
Temperature | Operating : 0℃ ~ 60℃ Storage : -20℃ ~ 80℃ |
Humidity | 5 ~ 95% (Non-condensing) |
Installation | DIN-Rail, Panel mounting |
Power Supply | 100 ~ 240VAC, 50/60Hz |

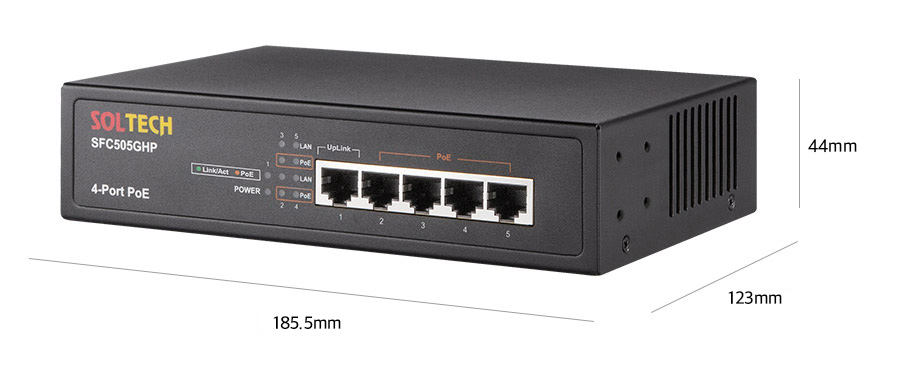

Dimensions | 185.4mm (W) x 123mm (D) x 44mm (H) |
