1. Mô tả sản phẩm
Description

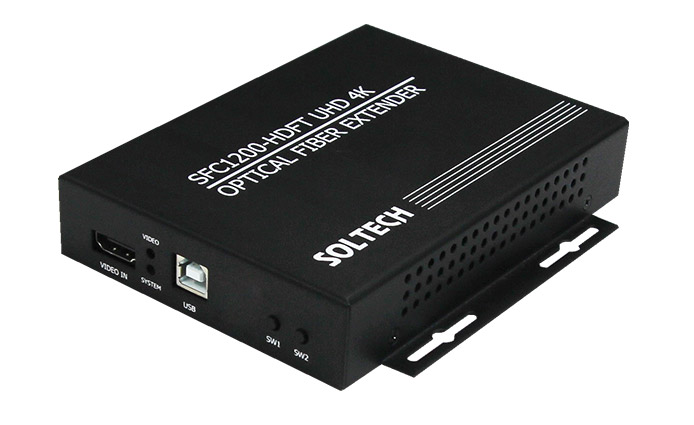

4K over TCP/IP Network, TP/Fiber Combo, 1 Port + 1Gbps TP 1 Port + 1Gbps SFP 1 Slot(Combo) + USB(KVM) Extender that transmits 4K HD-VIDEO signals over long distances.
Quality verificated 100% Made In Korea SFC1200-HDFT is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.
Product Details

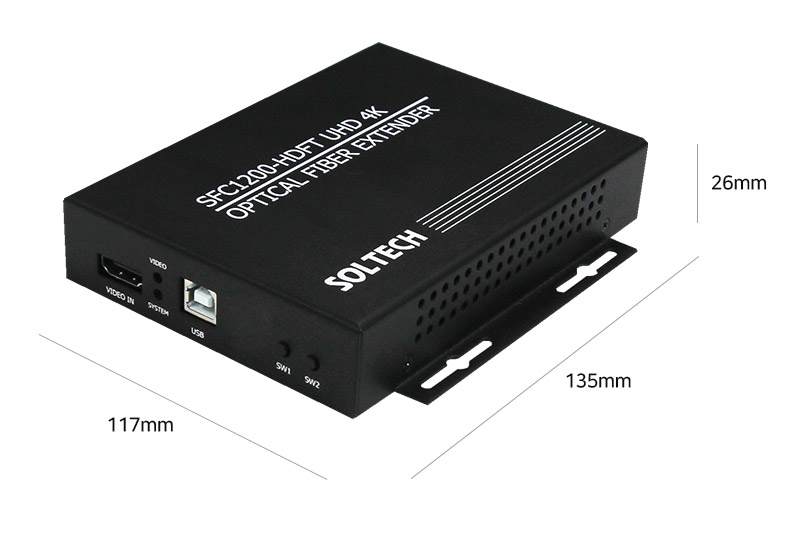

Dimensions
2. Thông số kỹ thuật
Compare Product Lines
| SFC1200-HDT | SFC1200-HDF | SFC1200-HDFT | |
|---|---|---|---|
| TP Port | 1 TP(100Mbps) | – | 1 TP(1Gbps) |
| Fiber Port | – | 1 SC(WDM) | 1 SFP(1Gbps) |
| Video Port | 1 HD1080P | 1 HD1080P | 1 4K2160P |
| USB Terminal1 | – | – | TX:1(B Type) |
| USB Terminal2 | Micro USB 1Port | – | RX:2(A Type) |
| PoE Port | – | – | – |
| 4K 2160P/30Hz | – | – |  |
| FHD 1080P/60Hz | |
|
|
| 720P | |
|
|
| 480P | |
|
|
| Multi Casting | |
|
|
| N:N | – | – | |
| Operating Temperature | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ |
| Power Input | DC 5V, Micro USB B | DC 5V | DC 12V |
| Power Consumption | AC 2W | AC 2.8W | AC 4.8W |
| Installation Method | – | Wall Mount | Wall Mount |
| Dimension (WxDxH) | 51x84x21(mm) | 117x135x26(mm) | 117x135x26(mm) |
