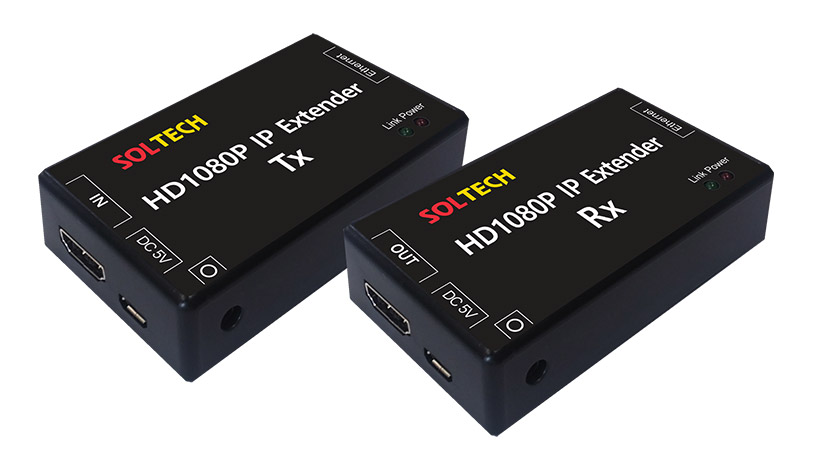

Extender that transmits HD1080P VIDEO signals over long distances

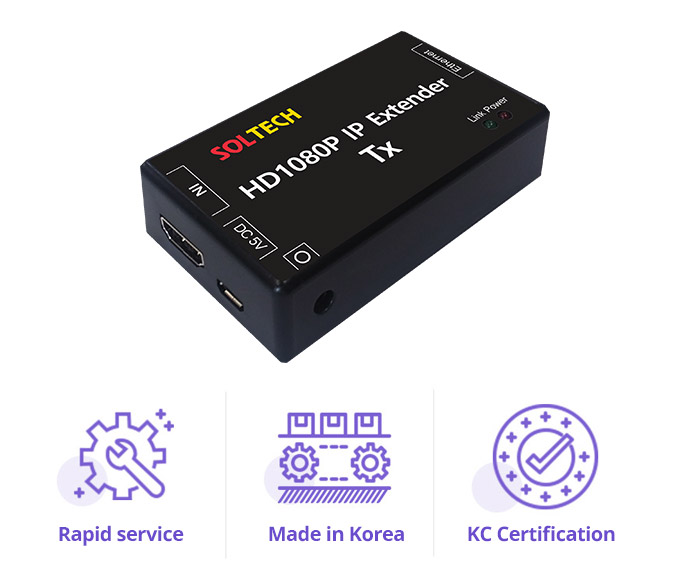

SFC1200-HDT is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.
SFC1200-HDT | SFC1200-HDF | SFC1200-HDFT | |
---|---|---|---|
TP Port | 1 TP(100Mbps) | – | 1 TP(1Gbps) |
Fiber Port | – | 1 SC(WDM) | 1 SFP(1Gbps) |
Video Port | 1 HD1080P | 1 HD1080P | 1 4K2160P |
USB Terminal1 | – | – | TX:1(B Type) |
USB Terminal2 | Micro USB 1Port | – | RX:2(A Type) |
PoE Port | – | – | – |
4K 2160P/30Hz | – | – | ![]() |
FHD 1080P/60Hz | ![]() |
![]() |
![]() |
720P | ![]() |
![]() |
![]() |
480P | ![]() |
![]() |
![]() |
Multi Casting | ![]() |
![]() |
![]() |
N:N | – | – | ![]() |
Operating Temperature | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ |
Power Input | DC 5V, Micro USB B | DC 5V | DC 12V |
Power Consumption | AC 2W | AC 2.8W | AC 4.8W |
Installation Method | – | Wall Mount | Wall Mount |

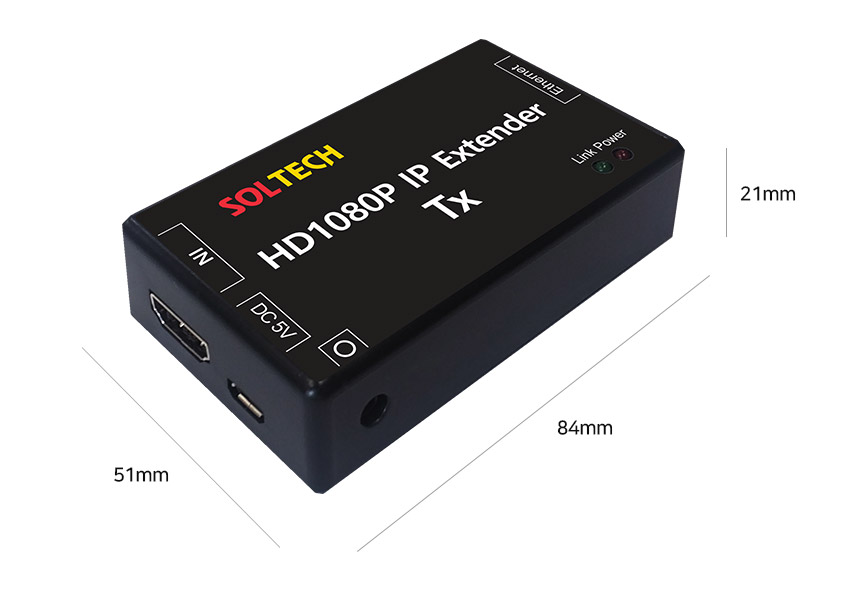

Dimension (WxDxH) | 51x84x21(mm) | 117x135x26(mm) | 117x135x26(mm) |
HDMI | HDMI 1.3a |
---|---|
RJ45 Ports | 1-Port 10/100Mbps TP |
Resolution | DTV/HDTV : 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 4K |
Temperature | Operation : 0℃ ~ 60℃ |
Humidity | 5 ~ 90% (Non-condensing) |
Input Voltage | DC 12V, 1.5A |
Dimensions | 51mm(W) x 85mm(D) x 20mm(H) |
