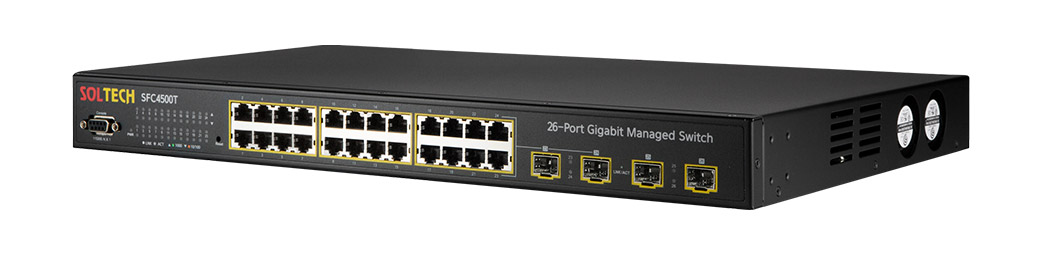

Switch SOLTECH Gigabit S-Ring managed 24-port SFC4500T
- 1Gbps TP 24-Ports + 1Gbps SFP 4-Slots, TP/SFP Combo(23,24), S-RING
- Gigabit S-Ring (Recovery time <10ms)
- TP 24-Port + SFP 4-Slot (Combo Port : 23,24)
- Auto Negotiation, Auto MDI-X
- Web based Management, SNMP Management
- IGMP Snooping
- IEEE 802.1p QoS and VoIP QoS
- Port Mirroring for Analysis of Network Errors and Traffics
- Network Security Optimization by IEEE 802.1 Q-in-Q
- IEEE 802.1x User Authentication for Network Security
- IEEE 802.1d & IEEE 802.1w Rapid Spanning Tree
Description

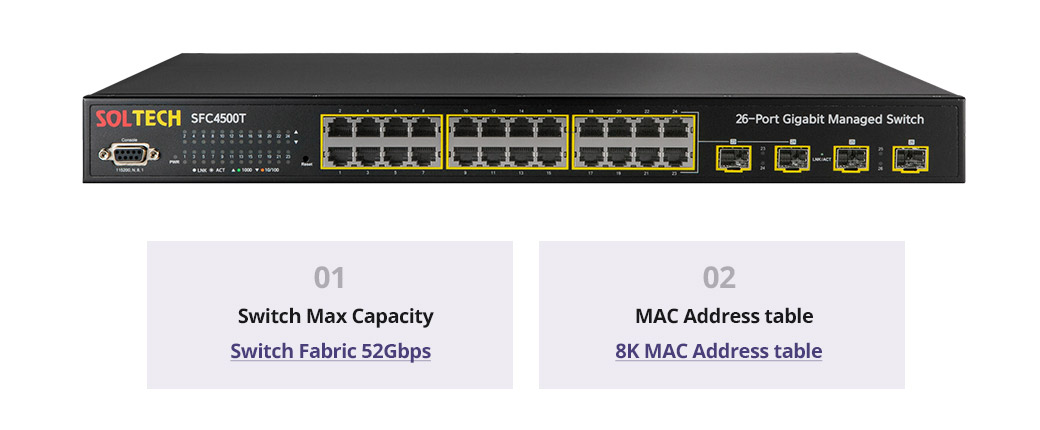

Management Support Web-based management
TP 24-Port Ethernet switch hub enables medium and small network deployment and supports web-based management to help customers manage their networks comfortably
10/100/1000M TP24 Ports 1G SFP 4Slots Multi Port Switch
SFC4500T supports 4 SFP slots up to 1Gbps and 24 TP Ports up to 1Gbps for a seamless network experience

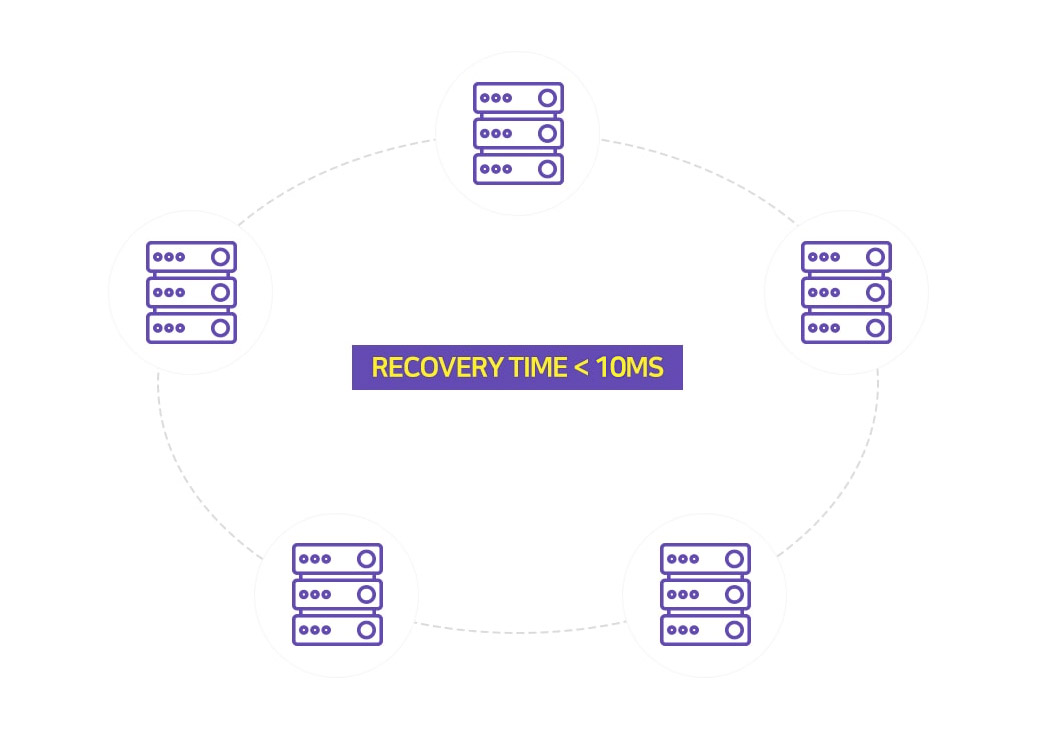

Fast recovery time S-Ring Protocol
With Soltech’s technology, the S-Ring protocol with reliable and fast recovery time is built to create a stable network environment with easy setup and fast recovery time.
Product Details

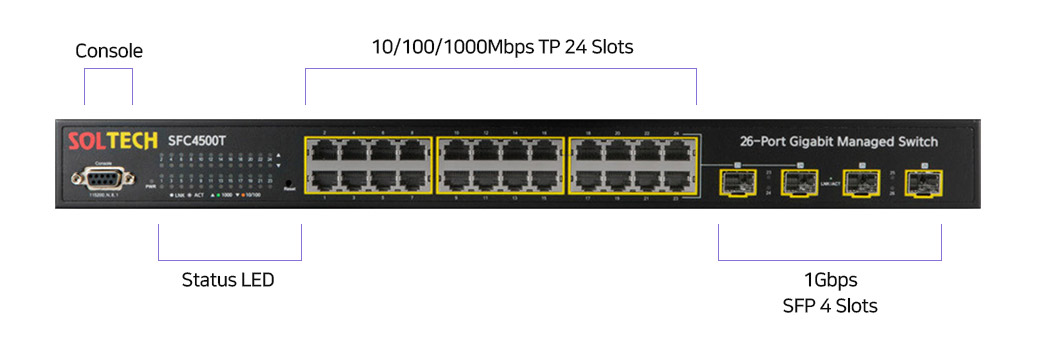

Construction

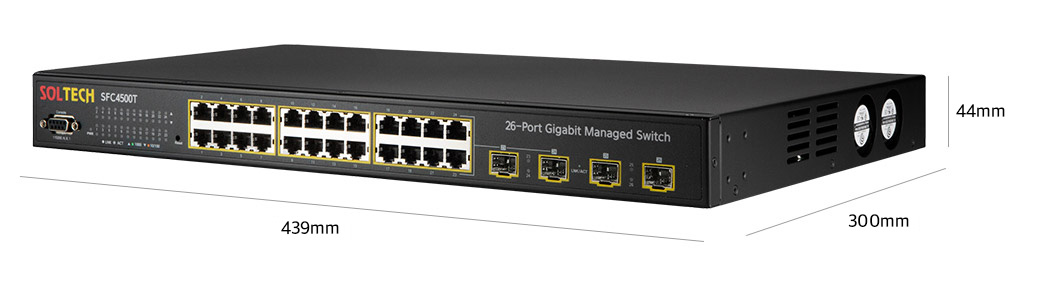

Dimensions
Compare Product Lines
| SFC400GM | SFC420GM | SFC400HP | SFC4000HP | SFC4000T | SFC450R | SFC450HP | SFC4500T | SFC4500HP | |
|---|---|---|---|---|---|---|---|---|---|
| RJ45Port | 8 TP(1Gbps) | 8 TP(1Gbps) | 8 TP(1Gbps) | 24 TP(1Gbps) | 24 TP(1Gbps) | 8 TP(1Gbps) | 8 TP(1Gbps) | 24 TP(1Gbps) | 24 TP(1Gbps) |
| PoE Port | – | – | 8 PoE(af/at) | 24 PoE(af/at) | – | – | 8 PoE(af/at) | – | 24 PoE(af/at) |
| Combo Port | – | – | – | 2 Port(23,24) | – | – | – | 2 Port(23,24) | 2 Port(23,24) |
| SFP/SFP+ Port | 2 SFP(1Gbps) | 2 SFP(1Gbps) | 2 SFP(1Gbps) | 4 SFP(1Gbps) | 4 SFP(1Gbps) | 2 SFP(1Gbps) | 2 SFP(1Gbps) | 4 SFP(1Gbps) | 4 SFP(1Gbps) |
| Switch Fabric | 20Gbps | 20Gbps | 20Gbps | 52Gbps | 56Gbps | 20Gbps | 20Gbps | 52Gbps | 52Gbps |
| Throughput | 14.8Mpps | 14.8Mpps | 14.8Mpps | 36.68Mpps | 41.6Mpps | 14.8Mpps | 14.8Mpps | 38.68Mpps | 38.68Mpps |
| Memory(RAM) | 128MB | 128MB | 128MB | 128MB | 128MB | 128MB | 128MB | 128MB | 128MB |
| Flash Memory | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB |
| MAC Table | 8K | 8K | 8K | 8K | 8K | 8K | 8K | 8K | 8K |
| Jumbo Frame | 9.6K | 9K | 9.6K | 9.6K | 9K | 9.6K | 9.6K | 9.6K | 9.6K |
| Operating Temperature | 0 ~ 60℃ | 0 ~ 50℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 50℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ |
| Power Input | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V |
| Power Consumption | AC 7.6W | AC 10W | AC 130W | AC 441W | AC 25W | AC 7.6W | AC 130W | AC 36W | AC 441.1W |
| PoE Capacity | – | – | PoE Max. 120W | PoE Max. 380W | – | – | PoE Max. 120W | – | PoE Max. 380W |
| Installation Method | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount |
| Dimension (WxDxH) | 217 x 155 x 44 (mm) | 280 x 180 x 44 (mm) | 331 x 153 x 44 (mm) | 439.5 x 300 x 44 (mm) | 440 x 230 x 45 (mm) | 217 x 155 x 44 (mm) | 331 x 153 x 44 (mm) | 439 x 300 x 44 (mm) | 439 x 300 x 44 (mm) |
| STP/RSTP/MSTP 802.1Q VLAN IEEE 802.1 IGMP Snooping |
 |
|
|
|
|
|
|
|
|
| ERPS, S-RING | |
|
|
|
|
|
|
|
|
Thông số kỹ thuật
| Standards | IEEE 802.3 10Base-T, IEEE 802.3z Gigabit SX/LX IEEE 802.1d Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1x Port Authentication Network Control IEEE 802.1Q VLAN Tagging IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3ab Gigabit 1000T IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1p Class of Service |
|---|---|
| RJ45 Ports | 10/100/1000Mbps TP 24-Ports (Combo Port : 23,24) Auto-Negotiation Auto MDI-X |
| Fiber Ports | 4-SFP Slots (Combo Port : 23,24) 1000Mbps-SX/LX SFP 100Mbps-FX SFP Speed auto detection |
| LED Indicators | System : Power Ports : 10/100/1000Mbps Link/Act, SFP Link |
| Back Plane | Switching Fabric 52Gbps, Jumbo Frame 9.6Kbytes |
| Ring | S-Ring Support |
| MAC Address | 8K MAC Address table |
| Temperature | Operation : 0℃ ~ 60℃ Store : – 20℃ ~ 80℃ |
| Humidity | 10 ~ 90% (Non-condensing) |
| Input Voltage | 100 ~ 240VAC, 50/60Hz, DC36V~55V |
| Dimension | 440mm (W) x 300mm (D) x 44mm (H) |
