Compare Product Lines
| Standards | IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.1Q VLAN Tagging IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.1w Rapid Spanning tree protocol IEEE 802.3z Gigabit SX/LX IEEE 802.1x Port Authentication Network Control IEEE 802.3ab Gigabit 1000T IEEE 802.1p Class of Service |
|---|---|
| RJ45 Ports | 10/100/1000Mbps TP 24Ports Auto-Negotiation Auto MDI-X |
| Fiber Ports | SFP 24Slots 100M/1000M SFP SFP+ 6Slots 10G/1G |
| LED Indicators | System : Power, System Ports : 10/100/1000Mbps Link/Act, SFP Link/Act |
| Basic | Switch Fabric : 216Gbps Throughput : 160.7Mpps@64Bytes Mac Address Table : 32K entries Share Data Buffer : 2Mbytes VLAN TABLE : 4K ACL Table : 2K IP Routing Table : 12K Layer 3 Interface : 1K Jumbo Frame : 9Kbytes |

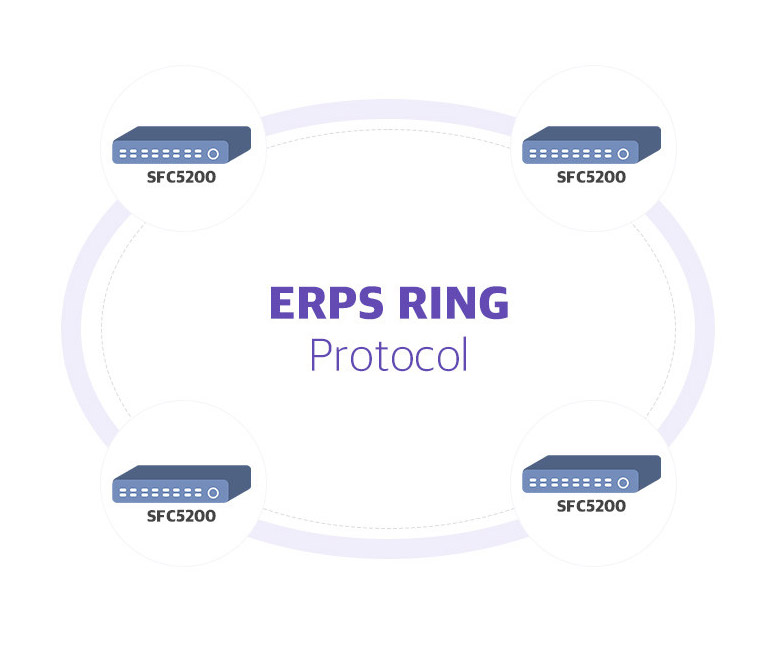

| Layer | Layer 2 : IEEE 802.1D(STP)/802.1w(RSTP)/02.1s(MSTP), ITU-T G.8032 ERPS, LACP, LLDP IPv4 Routing Protocol : Static, RIPv1v2, OSPFv1v2, BGP IPv6 Routing Protocol : Static, RIPng, OSPFv3, BGP4+ Multicast Protocol : IGMP v1/v2/v3, MLD V1/V2, MLD snooping, PIM-DM, PIM-SM Reliability : VRRP v1/v2/v3, Virtual Stacking Management : Console. SSH, Telnet, SNMPv1v2v3 |
| Temperature | Operation: 0℃ ~ 50℃ Storage: -20℃ ~ 70℃ |
| Humidity | 10 ~ 90% (Non-condensing) |
| Input Power | 100 ~ 240VAC, 50/60Hz |
| Power Consumption | Power Consumption Max. 68watts |
| Dimensions | 440mm(W) x 350mm(D) x 44mm(H), 1U |
