Switch SOLTECH truyền 20km SFC400-SCS4
- 100Mbps TP 4-Ports + 100Mbps Fiber 4-Ports, Single-mode, SC Connector
- E 802.3 10Base-T, IEEE802.3u 100Base-TX
- Fiber Optic 100Mbps-FX, Ethernet 10/100Mbps-TX
- Switch Operation/Connection status LED display
- Auto MDI-X TP port, Auto Negotiation
- Built-in power supply (110 ~ 220VAC, DC 48V option)
- 19”RACK installation
- Operating temperature : 0℃ ~ 60℃
Description
100Mbps Fiber SC 4 Port 10/100Mbps TP 4 Ports unmanaged Single mode Ethernet SwitchEthernet switch that can transmit 100Mbps ethernet signal for 20km distance in SC single mode. It is necessary for Fiber to UTP connection, and reliable transmission at wide bandwidth and long distance is possible.

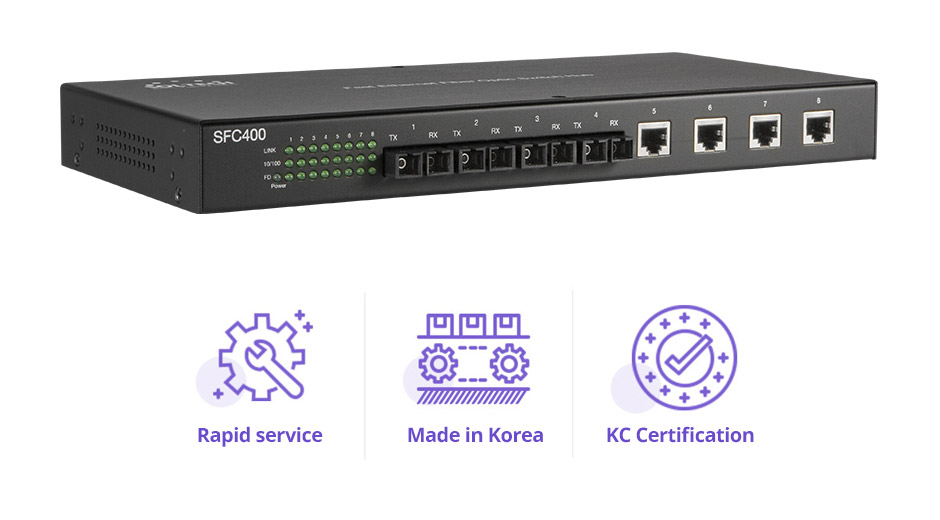

Quality verification completed 100% Made in Korea100% Korea manufactured Ethernet switch. We have inspected all the processes from production to delivery, so please use it with confidence.

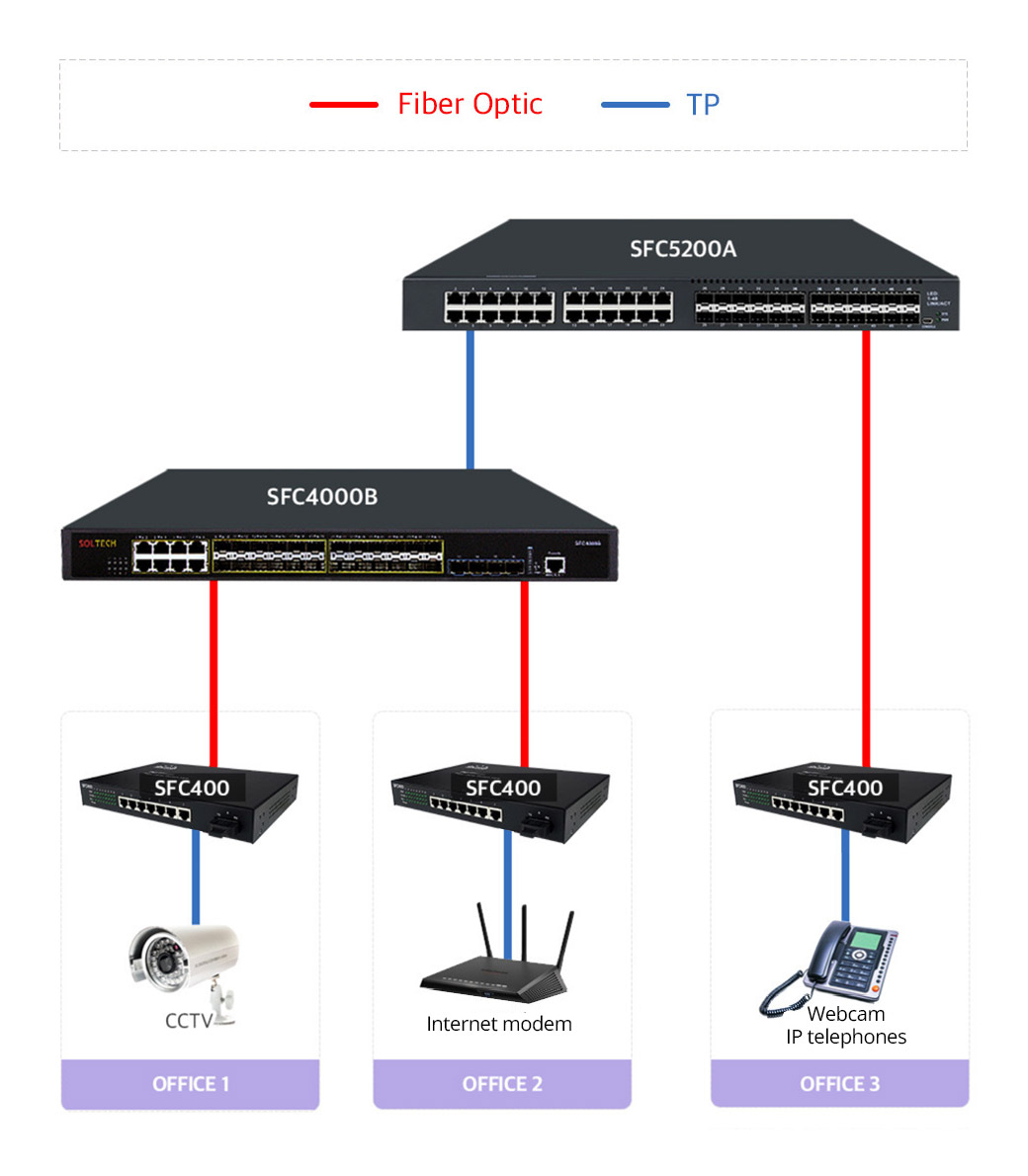

Build network equipment based on-site environmentsVarious equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

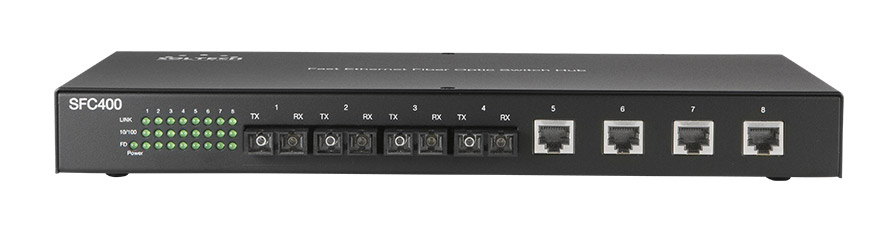

Product Details

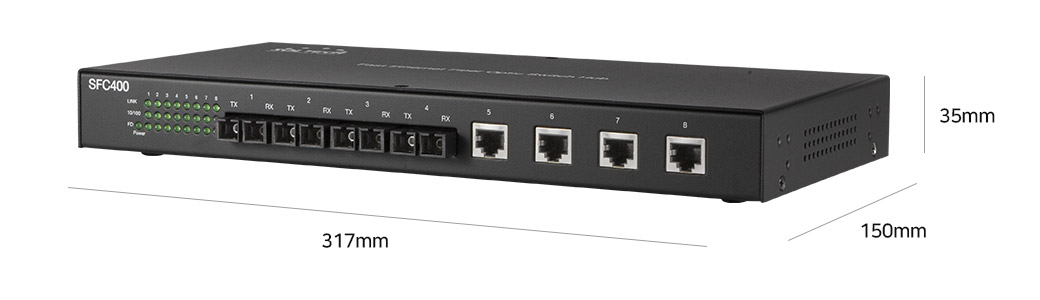

Dimensions
Compare Product Lines
SOLTECH2600 SFC300G SFC400-SCS SFC400-SCS2 SFC400-SCS4 SFC400-SCS6 SFC400-SCM SFC400-SCM2 SFC400-SCM4 SFC400-SCM6 RJ45Port 24 TP(1Gbps) 2 TP(1Gbps) 7 TP(100Mbps) 6 TP(100Mbps) 4 TP(100Mbps) 2 TP(100Mbps) 7 TP(100Mbps) 6 TP(100Mbps) 4 TP(100Mbps) 2 TP(100Mbps) SFP/SFP+ Port 2 SFP(1Gbps) 2 SFP(1Gbps) 1 SC(100Mbps) 2 SC(100Mbps) 4 SC(100Mbps) 6 SC(100Mbps) 1 SC(100Mbps) 2 SC(100Mbps) 4 SC(100Mbps) 6 SC(100Mbps) Switch Fabric 52Gbps 8Gbps 1.6Gbps 1.6Gbps 1.6Gbps 1.6Gbps 1.6Gbps 1.6Gbps 1.6Gbps 1.6Gbps Throughtput 38.6Mpps 5.9Mpps 1.2Mpps 1.2Mpps 1.2Mpps 1.2Mpps 1.2Mpps 1.2Mpps 1.2Mpps 1.2Mpps Fiber Mode – – Single-mode Single-mode Single-mode Single-mode Multi-mode Multi-mode Multi-mode Multi-mode Transmission Distance – – 20km 20km 20km 20km 2km 2km 2km 2km MAC Table 8K 1K 1K 1K 2K 2K 1K 1K 2K 2K Operating Temperature 0 ~ 40℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ Power Input AC 100 ~ 240V DC 12V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V Power Consumption AC 8.7W AC 8.2W AC 5.6W AC 7.8W AC 13.6W AC 13.8W AC 5.6W AC 7.8W AC 13.6W AC 13.8W Installation Method Rack Mount Wall Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Dimension(WxDxH) 440x205x44(mm) 98x105x26(mm) 240x165x35(mm) 240x165x35(mm) 317x150x35(mm) 317x150x35(mm) 240x165x35(mm) 240x165x35(mm) 317×150
Thông số kỹ thuật
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 10/100Mbps-TX / 100Mbps-F |
|---|---|
| RJ45 Ports | 10/ 100Mbps TP Auto Negotiation Auto MDI / MDI-X TP/STP Cat. 3,4,5 Cable, EIA/TIA-568 100-ohm (100m) |
| Fiber Ports | 100Mbps-FX (SC Connector Type) Single-mode : 9/125㎛ (~100km) |
| LED Indicators | Power, FD, Link/Act, Speed |
| Troughput | 100Mbps |
| Temperature | Operation : 0℃ ~ 60℃ Storage : -20℃ ~ 80℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Installation | 19” Rack Installation |
| Input Power | 110 ~ 220VAC, 50/60Hz |
| Dimensions | 317mm (W) x 150mm (D) x 35mm (H) |
