Bộ chuyển mạch công nghiệp Unmanaged SFC300-POE
- Industrial Switch, 100Mbps PoE 4-Ports + 100Mbps SFP 2-Slots, PoE 60W
- 802.3af PoE 15.4 Watt (Max. 60W)
- DIN-Rail installable
- Power polarity protection circuit built-in
- DC 48V (terminal block) power supply method
- IEEE802.3af Power Over Ethernet / PSE
- 4-Ports (PoE 802.3af) + SFP 2-Slots industrial optical switch
- 100Mbps PoE switch suitable for industrial environment
Description
Industrial PoE switch that can withstand extreme environmentsIndustrial PoE switch that can endure severe environment allowing to provide high maintenance. speed reliable network to rough industrial field smart city, factory, plants, apartment and buildings. Web-based management allows the user to have convenient managing of switch.

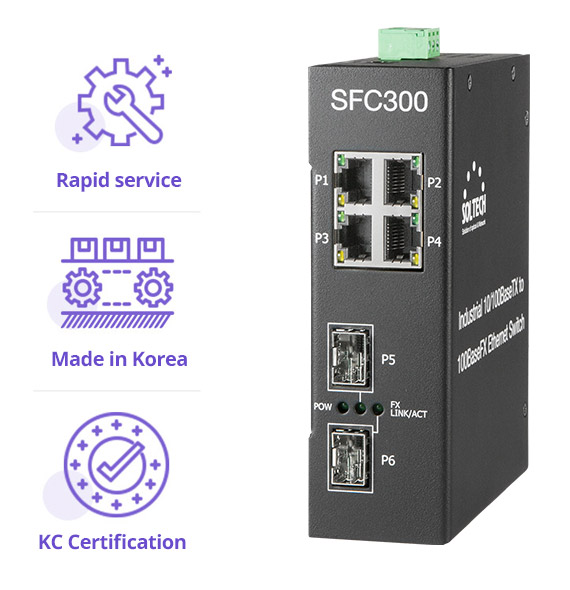

Quality verificated 100% Made In KoreaSFC300-PoE is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.

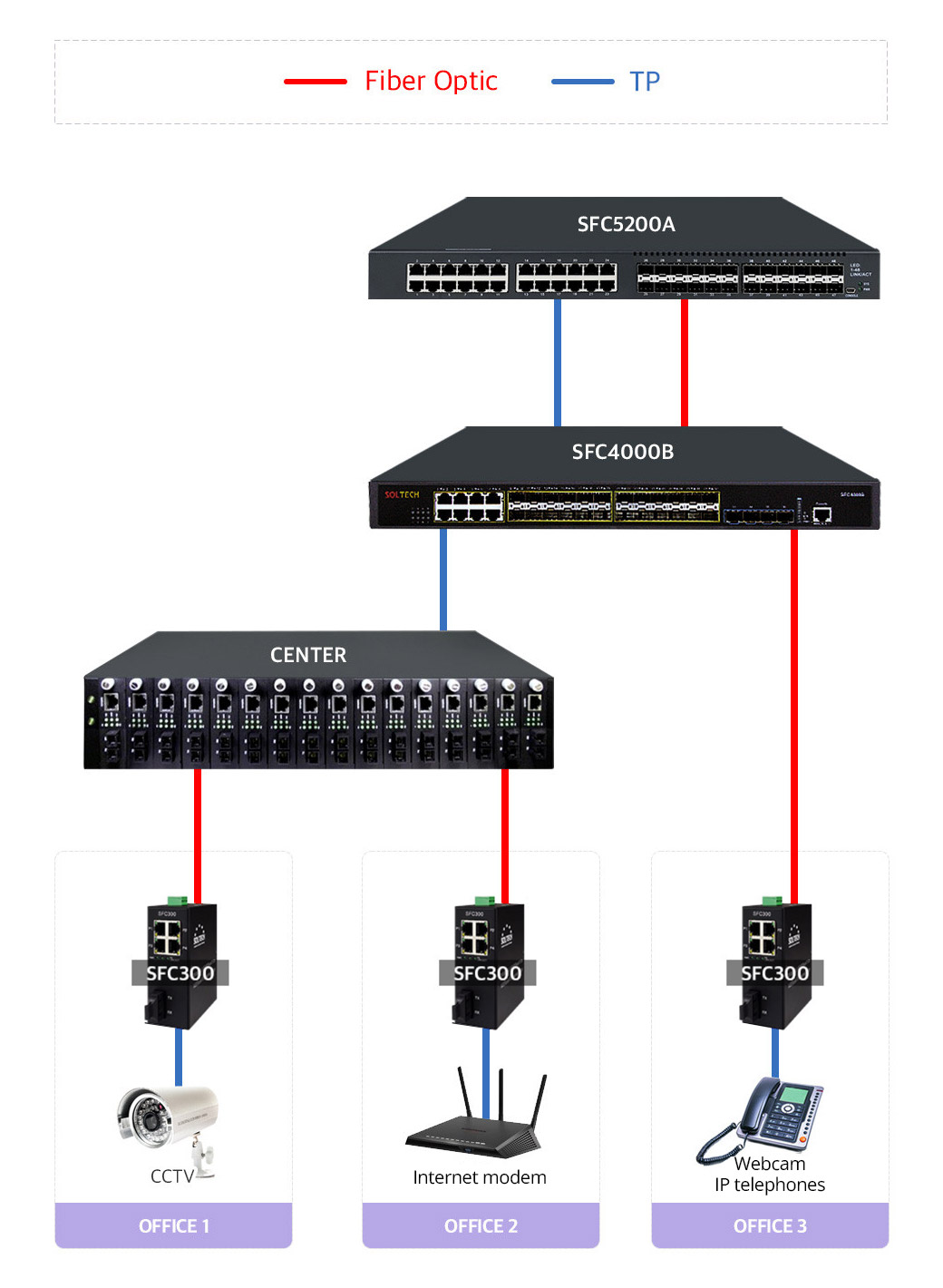

100Mbps PoE 4 Ports, 100Mbps 2 SFP Slots switchVarious equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.
Product Details

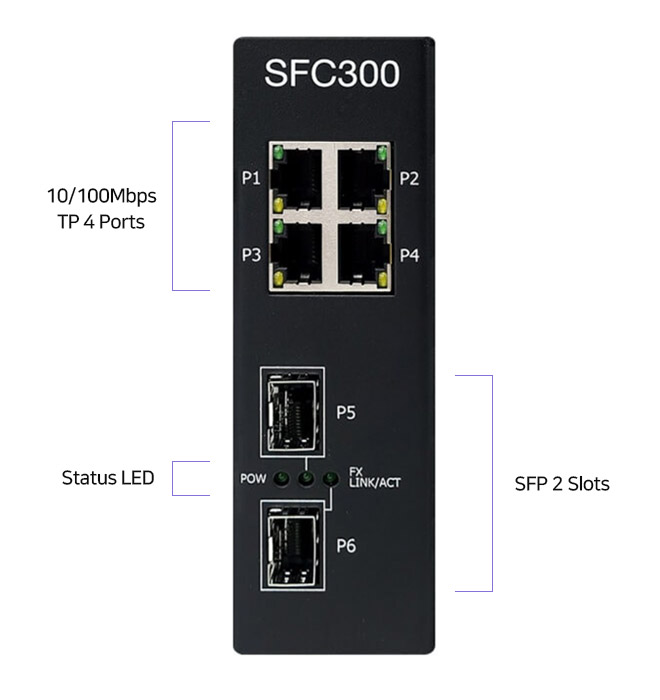

Construction

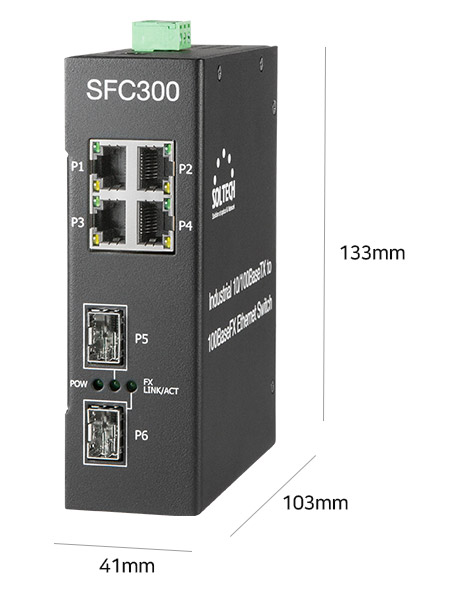

Dimensions
Compare Product Lines
SFC300T SFC300-SCS SFC300-SCS2 SFC300-SCM SFC300-SCM2 SFC300-PoE SFC300-SFP SFC300GS SFC310C RJ45Port 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 2 TP(1Gbps) 1 TP(1Gbps) SFP/SFP+ Port – 1 SC(100Mbps) 2 SC(100Mbps) 1 SC(100Mbps) 2 SC(100Mbps) 2 SFP(100Mbps) 2 SFP(100Mbps) 2 SFP(1Gbps) 1 SFP(1Gbps) Switch Fabric 0.8Gbps 1Gbps 1.2Gbps 1Gbps 1.2Gbps 1.2Gbps 1.2Gbps 8Gbps 4Gbps Throughtput 0.6Mpps 0.7Mpps 0.9Mpps 0.7Mpps 0.9Mpps 0.9Mpps 0.9Mpps 5.9Mpps – MAC Table 1K 1K 1K 1K 1K 1K 1K 4K 2K Jumbo Frame – – – – – – – 9K 9K Operating Temperature -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ Power Input DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 48 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V Power Consumption AC 3.7W AC 4.2W AC 4.3W AC 4.2W AC 4.3W AC 65W AC 5.3W AC 4.2W AC 2.1W PoE Capacity – – – – – PoE Max. 60W – – Installation Method DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount Dimension (WxDxH) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 41 x 103 x 133 (mm) 41 x 103 x 133 (mm) 39 x 107 x 97 (mm) 33 x 77 x 110 (mm)
Thông số kỹ thuật
| Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3U 100Base-TX/100Base-FX IEEE 802.3af Power Over Ethernet Standards |
|---|---|
| RJ45 Ports | POE 10/100Mbps TP 4-Ports Auto MDI/MDI-X UTP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm (Transmission Distance 100m) Provides DC 48V Power Over RJ-45 Ethernet Cable to Devices with Ethernet Port |
| Fiber Ports | 100Mbps-FX, SFP 2-Slots Multi-mode : 62.5/125㎛ (2km) Single-mode : 9/125㎛ (~ 100km) |
| LED Indication | Per unit : Power, Fault TX Port (Link/Act, FDX/HDX, Speed) FX Port (Link/Act, FDX/HDX, Speed) |
| Throughput | 100Mbps |

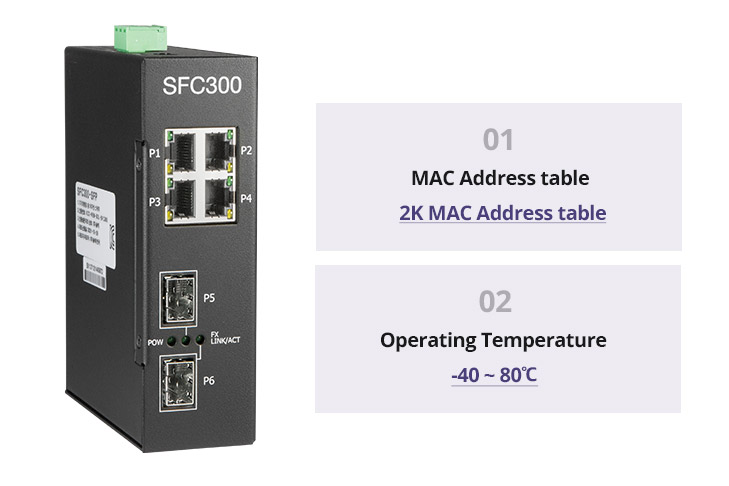

| MAC Address | 2K MAC Address table |
| PoE | 15.4Watt (MAX 60W) per port |
| Humidity | 5 ~ 95% (Non-condensing) |
| Installation | DIN-Rail, Panel mounting |
| Temperature | Operating : – 40℃ ~ 80℃ Storage : – 45℃ ~ 85℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Power Supply | DC 48V |
| Dimensions | 55mm(W) x 120mm(D) x 150mm(H) |
