SFC8000GHP 2.5G POE SFP 4 port TP 8 port industrial switching hub

  • 1Gbps PoE 8-Ports + 1Gbps SFP 2-Slots + 1G/2.5Gbps SFP 2-Slots, S-RING, PoE 240W
SFC8000GHP_thum_03
SFC8000GHP_thum_02
  • 10/100/1000Mbps TP 8-Ports (802.3at PoE) + 1Gbps SFP 2-Slots + 2.5Gbps SFP 2-Slots
  • Web based Management, Telnet, SSH, SNMP, RMON, Syslog
  • Auto Scan Manager Program (Scan, IP Setting)
  • STP (IEEE 802.1D) / RSTP (IEEE802.1W) / MSTP (IEEE802.1Q)
  • S-Ring(Recovery time < 10ms), Dual-Ring
  • Carrier Ethernet (ERPS)
  • PMC support (IGMP/MLD)
  • Priority Queue Support (8 Queue per port)

    Description

    Industrial Ethernet optical switch that can withstand extreme environments

    Industrial fiber optic ethernet switch that can endure severe environment allowing to provide high speed reliable network to rough industrial field smart city, factory, plants, apartment and buildings. Web-based management allows the user to have convenient maintenance.

    Industrial PoE switch that does not require a separate power line

    Best power reliability for maximum 100 meter distance at industrial environment. By following IEEE 802.at PoE, 30W per port can be used for the 8 PoE port at the same time supporting maximum power budget of 240W.

    Fast recovery time S-RING protocol

    With SOLTECH’s high technical background, we developed our own ring protocol called S-RING. S-RING allows optimized network with high speed recovery time during the failure, and the user convenience by easy setting.

    Product Details

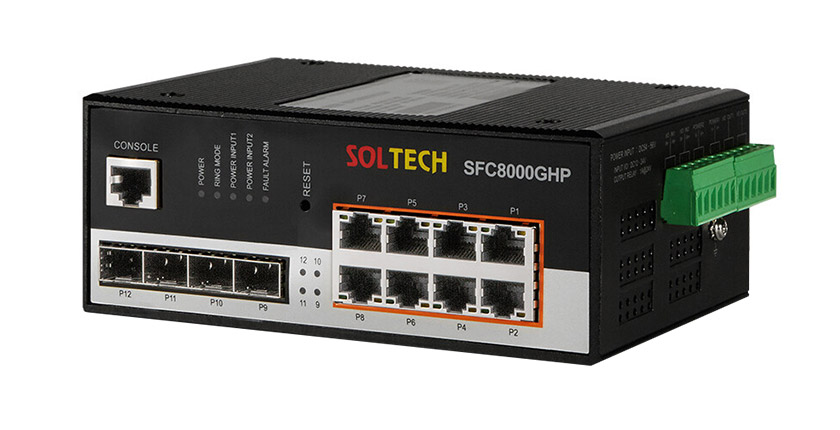

    Construction

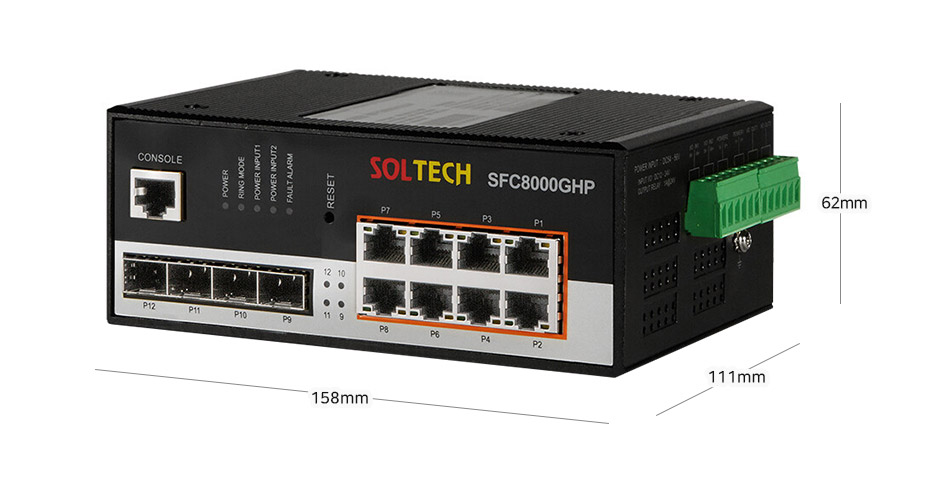

    Dimensions

    Compare Product Lines

    SFC8000 SFC8000HP SFC8000G SFC8000GHP SFC8000BP SFC8000S
    RJ45Port 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 4 TP(1Gbps)
    PoE Port 8 PoE(af/at) 8 PoE(af/at)
    SFP/SFP+ Port 2 SFP(2.5Gbps) 2 SFP(2.5Gbps) 2 SFP(1Gbps)
    2 SFP(2.5Gbps)
    2 SFP(1Gbps)
    2 SFP(2.5Gbps)
    2 SFP(1Gbps)
    2 SFP(2.5Gbps)
    2 SFP(2.5Gbps)
    BYPASS
    Switch Fabric 26Gbps 26Gbps 30Gbps 30Gbps 30Gbps 18Gbps
    Throughput 19.3Mpps 19.3Mpps 22.3Mpps 22.3Mpps 22.3Mpps 13.3Mpps
    Memory(RAM) 128MB 128MB 128MB 128MB 128MB 128MB
    Flash Memory 16MB 16MB 16MB 16MB 16MB 16MB
    MAC Table 8K 8K 8K 8K 8K 8K
    Jumbo Frame 9.6K 9.6K 9.6K 9.6K 9.6K 9.6K
    Power Input DC 12 ~ 56V DC 48 ~ 56V DC 12 ~ 56V DC 48 ~ 56V AC 100 ~ 240V DC 12 ~ 56V
    Power Consumption AC 10.6W AC 260W AC 12.3W AC 262W AC 12.5W AC 7.6W
    PoE Capacity PoE Max. 240W PoE Max. 240W
    Dual Power
    Installation Method Wall or DinRail Wall or DinRail Wall Mount Wall or DinRail Rack Mount DinRail Mount
    Dimension(WxDxH) 62 x 111 x 158 (mm) 62 x 111 x 158 (mm) 151 x 154 x 44 (mm) 62 x 111 x 158 (mm) 266 x 184 x 88 (mm) 41 x 106 x 112 (mm)
    STP/RSTP/MSTP
    802.1Q VLAN
    IEEE 802.1
    IGMP Snooping
    ERPS, S-RING

Thông số kỹ thuật

Standards IEEE 802.3/3u/3ab/3z 10Base-T / 100base-Tx and 100Base-Fx / 1000base-T / Gigabit Fiber
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1Q VLAN Tagging, IEEE 802.ad LACP
RJ45 Ports 10/100/1000Mbps TP 8-Ports
Auto MDI/MDI-X
TP/STP Cat. 3, 4, 5, 6 Cable
EIA/TIA-568 100-ohm (100m)
Fiber Ports 100/1000/2.5 Gbps SFP Slot
Multi mode : 50/125㎛, 62.5/125㎛, Single mode : 9/125㎛
LED Indicators Per unit : Power, Power Input 1, Power Input 2, Fault/Alarm, Ring Master
1000Mbps TP port : Speed (1000Mbps, Yellow), Link/Activity (Green)
Mini-GBIC : Link/Activity (Green)
Input/Output 2 Input, 2 Output
Back Plane Switch Fabric 30Gbps
MAC Address 8K MAC Address table
Throughput 22.3Mpps
Temperature Operation : -40℃ ~ 80℃
Storage : -40℃~ 85℃
PoE Full Load : 40℃ ~ 50℃
Humidity 5 ~ 95% (Non-condensing)
Input Power DC 54V, Polarity Protection Circuit
Connection 2 removable 2 contact terminal blocks
PoE Max. PoE Output Power budget : 30W/Per port
240W for total PD’s consumption (depending on power input)
Installation Method DIN-Rail, Panel mounting
Dimensions 61mm (W) x 110mm (D) x 157mm (H), Aluminum case, IP30
