Industrial fiber optic ethernet switch that can endure severe environment allowing to provide high maintenance. speed reliable network to rough industrial field smart city, factory, plants, apartment and buildings. Web-based management allows the user to have convenient.
SFC300-SCM is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.
Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.
SFC300T | SFC300-SCS | SFC300-SCS2 | SFC300-SCM | SFC300-SCM2 | SFC300-PoE | SFC300-SFP | SFC300GS | SFC310C | |
---|---|---|---|---|---|---|---|---|---|
RJ45Port | 4 TP(100Mbps) | 4 TP(100Mbps) | 4 TP(100Mbps) | 4 TP(100Mbps) | 4 TP(100Mbps) | 4 TP(100Mbps) | 4 TP(100Mbps) | 2 TP(1Gbps) | 1 TP(1Gbps) |
SFP/SFP+ Port | – | 1 SC(100Mbps) | 2 SC(100Mbps) | 1 SC(100Mbps) | 2 SC(100Mbps) | 2 SFP(100Mbps) | 2 SFP(100Mbps) | 2 SFP(1Gbps) | 1 SFP(1Gbps) |
Switch Fabric | 0.8Gbps | 1Gbps | 1.2Gbps | 1Gbps | 1.2Gbps | 1.2Gbps | 1.2Gbps | 8Gbps | 4Gbps |
Throughtput | 0.6Mpps | 0.7Mpps | 0.9Mpps | 0.7Mpps | 0.9Mpps | 0.9Mpps | 0.9Mpps | 5.9Mpps | – |
MAC Table | 1K | 1K | 1K | 1K | 1K | 1K | 1K | 4K | 2K |
Jumbo Frame | – | – | – | – | – | – | – | 9K | 9K |
Operating Temperature | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ |
Power Input | DC 12 ~ 56V | DC 12 ~ 56V | DC 12 ~ 56V | DC 12 ~ 56V | DC 12 ~ 56V | DC 48 ~ 56V | DC 12 ~ 56V | DC 12 ~ 56V | DC 12 ~ 56V |
Power Consumption | AC 3.7W | AC 4.2W | AC 4.3W | AC 4.2W | AC 4.3W | AC 65W | AC 5.3W | AC 4.2W | AC 2.1W |
PoE Capacity | – | – | – | – | – | PoE Max. 60W | – | – | |
Installation Method | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount |
Dimension (WxDxH) | 42 x 87 x 112 (mm) | 42 x 87 x 112 (mm) | 42 x 87 x 112 (mm) | 42 x 87 x 112 (mm) | 42 x 87 x 112 (mm) | 41 x 103 x 133 (mm) | 41 x 103 x 133 (mm) | 39 x 107 x 97 (mm) | 33 x 77 x 110 (mm) |
Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3U 100Base-TX/100Base-FX MMF |
---|---|

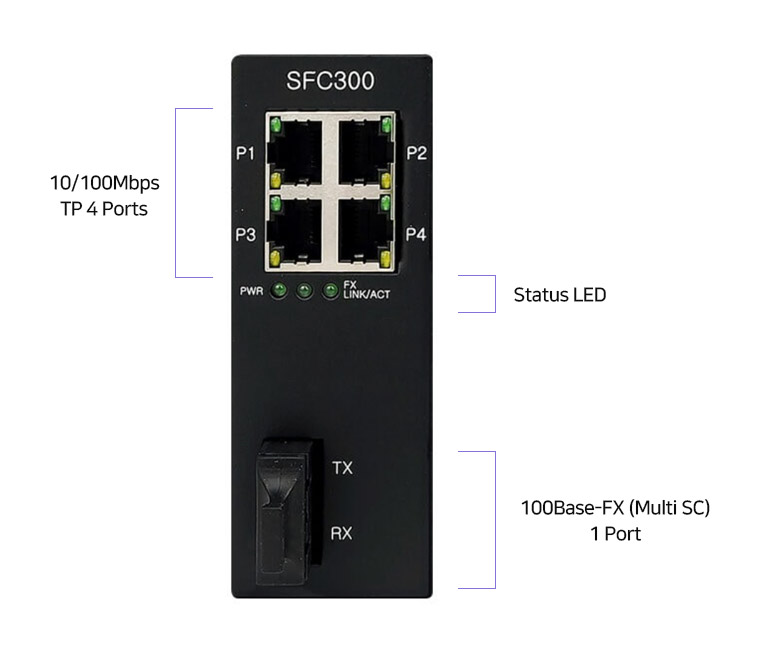

RJ45 Ports | 10/100Mbps 4-Ports UTP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm (Transmission Distance 100m) |
Fiber Port | 100Mbps- 1FX, MMF 2Core (SC type) Multi-mode : 62.5/125㎛ (2km) |
LED Indication | Per unit : Power, Fault TX Port (Link/Act, FDX/HDX, Speed), FX Port (Link/Act, FDX/HDX, Speed) |
Throughput | 100Mbps, 14,880pps for 10Mbps, 148,810pps for 100Mbps |
Mac Address | 2K MAC Address table |
Temperature | Operating : -40℃ ~ 80℃ Storage : -45℃ ~ 85℃ |
Humidity | 5 ~ 95% (Non-condensing) |
Installation | DIN-Rail, Panel mounting |
Power Supply | DC 12 ~ 48V (terminal block), Power polarity protection circuit built-in |

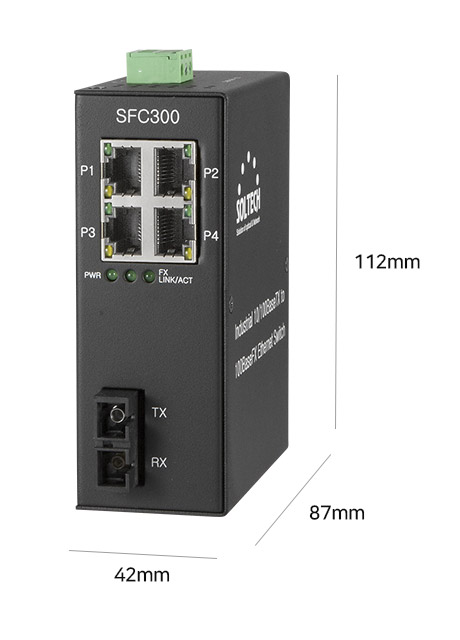

Dimension | 42mm (W) x 87mm (D) x 113mm (H) |
