1. Mô tả sản phẩm
Description
Industrial switches that withstand extreme environments Industrial switch that provides networks at a rapid pace, such as barren industrial sites, smart cities, factories and power plants, and apartment sites.

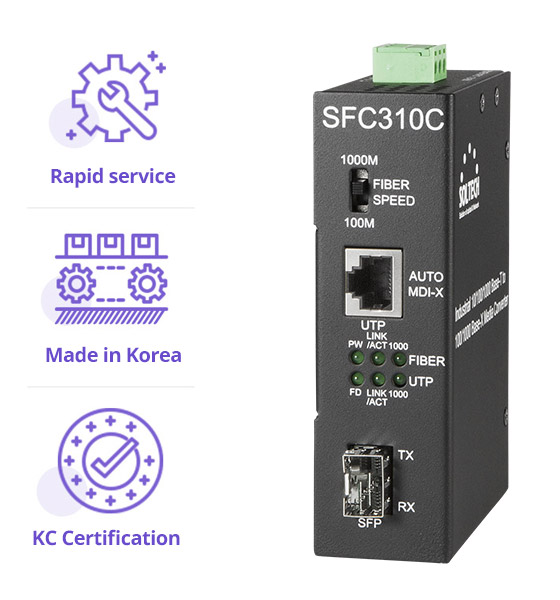

Quality verificated 100% Made In Korea SFC310C is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.

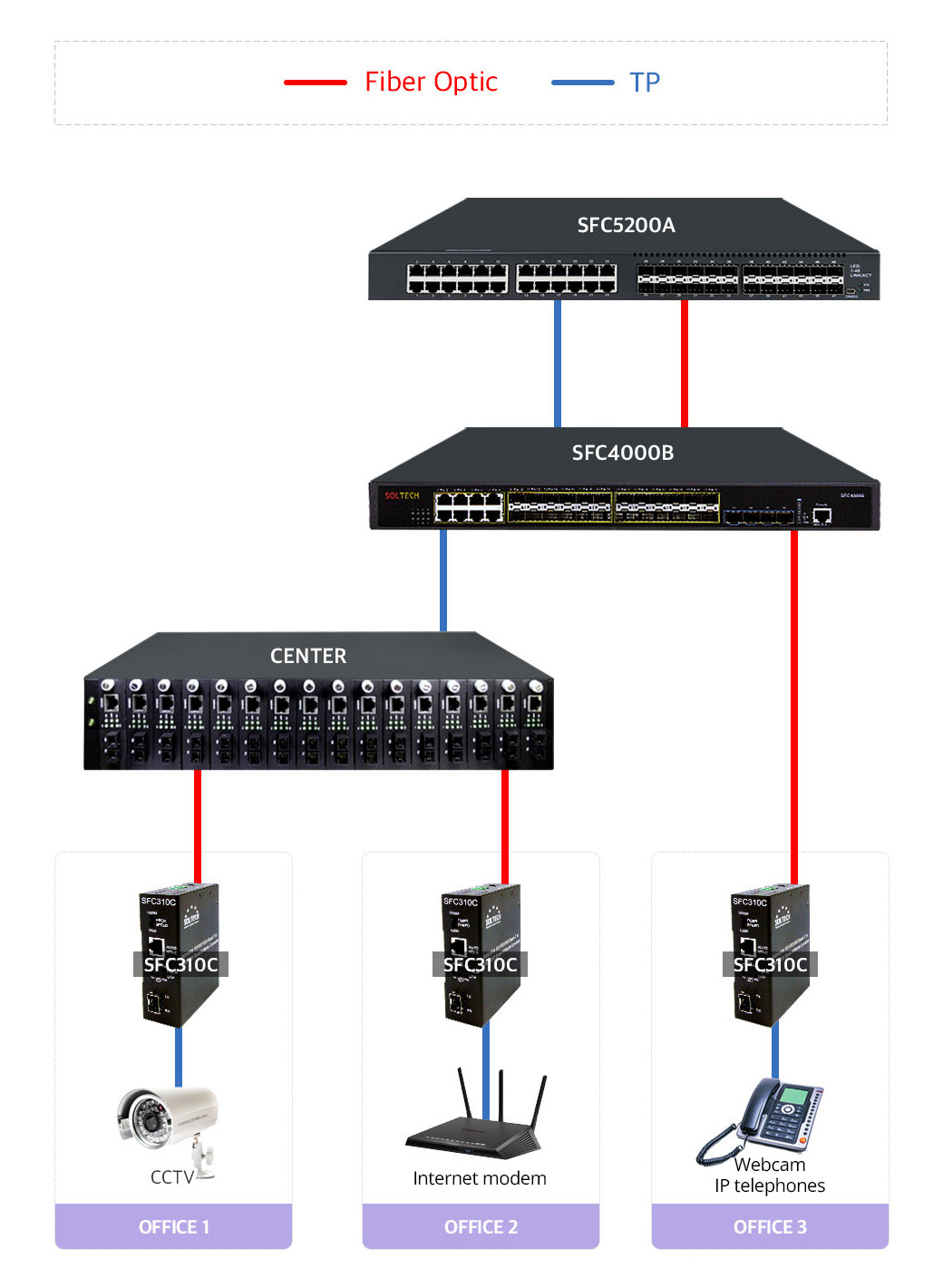

Build network equipment based on-site environments Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

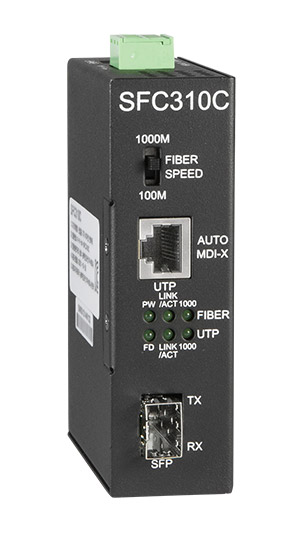

Product Details
Construction

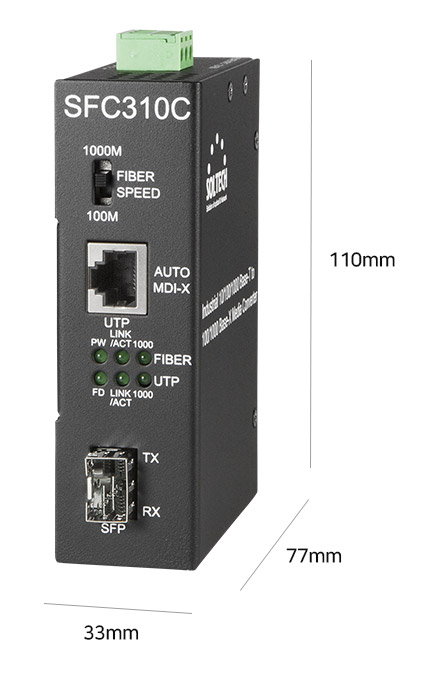

Dimensions
2. Thông số kỹ thuật
Compare Product Lines
| SFC300T | SFC300-SCS | SFC300-SCS2 | SFC300-SCM | SFC300-SCM2 | SFC300-PoE | SFC300-SFP | SFC300GS | SFC310C | |
|---|---|---|---|---|---|---|---|---|---|
| RJ45Port | 4 TP(100Mbps) | 4 TP(100Mbps) | 4 TP(100Mbps) | 4 TP(100Mbps) | 4 TP(100Mbps) | 4 TP(100Mbps) | 4 TP(100Mbps) | 2 TP(1Gbps) | 1 TP(1Gbps) |
| SFP/SFP+ Port | – | 1 SC(100Mbps) | 2 SC(100Mbps) | 1 SC(100Mbps) | 2 SC(100Mbps) | 2 SFP(100Mbps) | 2 SFP(100Mbps) | 2 SFP(1Gbps) | 1 SFP(1Gbps) |
| Switch Fabric | 0.8Gbps | 1Gbps | 1.2Gbps | 1Gbps | 1.2Gbps | 1.2Gbps | 1.2Gbps | 8Gbps | 4Gbps |
| Throughtput | 0.6Mpps | 0.7Mpps | 0.9Mpps | 0.7Mpps | 0.9Mpps | 0.9Mpps | 0.9Mpps | 5.9Mpps | – |
| MAC Table | 1K | 1K | 1K | 1K | 1K | 1K | 1K | 4K | 2K |
| Jumbo Frame | – | – | – | – | – | – | – | 9K | 9K |
| Operating Temperature | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ |
| Power Input | DC 12 ~ 56V | DC 12 ~ 56V | DC 12 ~ 56V | DC 12 ~ 56V | DC 12 ~ 56V | DC 48 ~ 56V | DC 12 ~ 56V | DC 12 ~ 56V | DC 12 ~ 56V |
| Power Consumption | AC 3.7W | AC 4.2W | AC 4.3W | AC 4.2W | AC 4.3W | AC 65W | AC 5.3W | AC 4.2W | AC 2.1W |
| PoE Capacity | – | – | – | – | – | PoE Max. 60W | – | – | |
| Installation Method | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount | DinRail Mount |
| Dimension (WxDxH) | 42 x 87 x 112 (mm) | 42 x 87 x 112 (mm) | 42 x 87 x 112 (mm) | 42 x 87 x 112 (mm) | 42 x 87 x 112 (mm) | 41 x 103 x 133 (mm) | 41 x 103 x 133 (mm) | 39 x 107 x 97 (mm) | 33 x 77 x 110 (mm) |
