1. Mô tả sản phẩm
Description

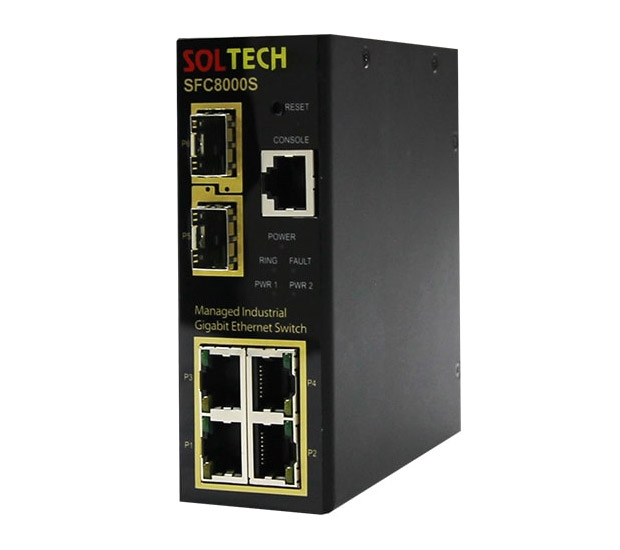

Industrial Ethernet optical switch that can withstand extreme environments Industrial fiber optic ethernet switch that can endure severe environment allowing to provide high speed reliable network to rough industrial field smart city, factory, plants, apartment and buildings. Web-based management allows the user to have convenient maintenance.

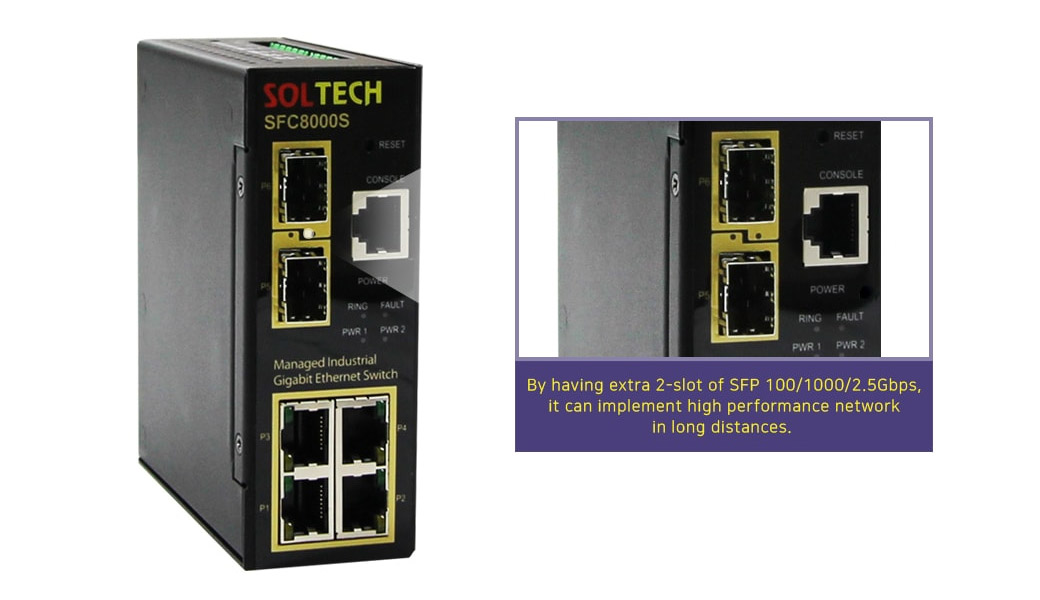

2-slot of SFP 100/1000/2.5Gbps without interruption Implements the best performance network environment by providing the perfect interoperability with various network equipment such as the routers and switches.

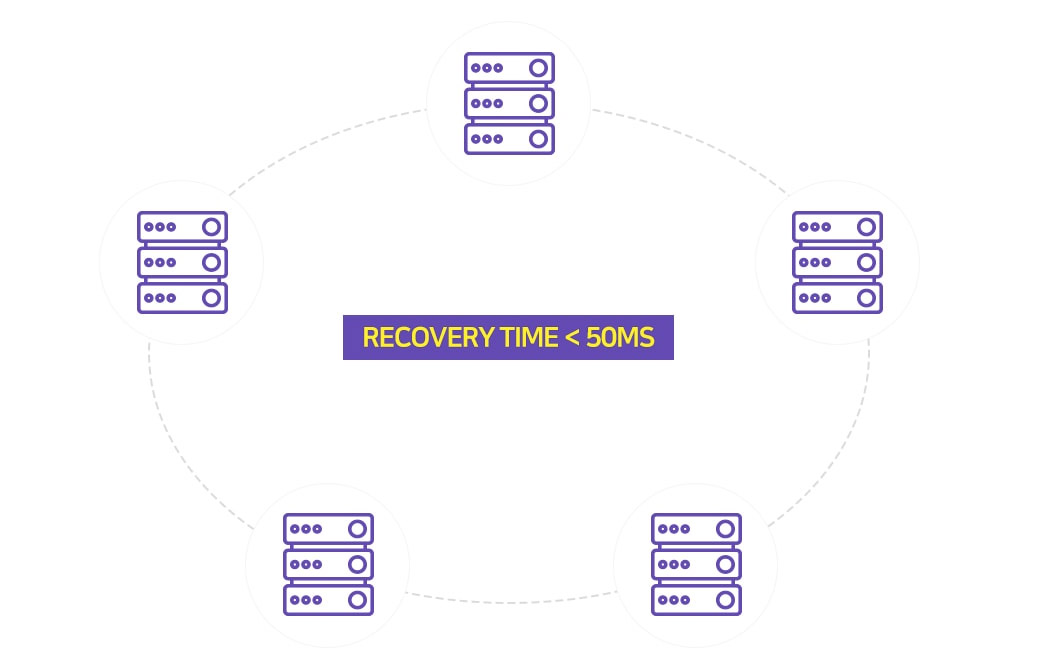

Fast recovery time S-RING protocol With SOLTECH’s high technical background, we developed our own ring protocol called S-RING. S-RING allows optimized network with high speed recovery time during the failure, and the user convenience by easy setting.
Product Details
Construction
Dimensions
Din-rail mount

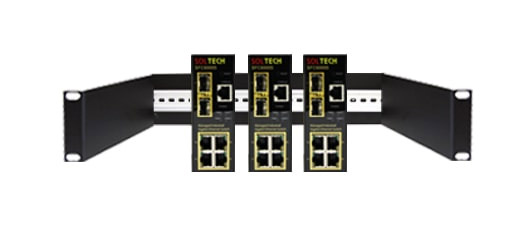

SFC8000S with bracket
2. Thông số kỹ thuật
Compare Product Lines
| SFC8000 | SFC8000HP | SFC8000G | SFC8000GHP | SFC8000BP | SFC8000S | |
|---|---|---|---|---|---|---|
| RJ45Port | 8 TP(1Gbps) | 8 TP(1Gbps) | 8 TP(1Gbps) | 8 TP(1Gbps) | 8 TP(1Gbps) | 4 TP(1Gbps) |
| PoE Port | – | 8 PoE(af/at) | – | 8 PoE(af/at) | – | – |
| SFP/SFP+ Port | 2 SFP(2.5Gbps) | 2 SFP(2.5Gbps) | 2 SFP(1Gbps) 2 SFP(2.5Gbps) |
2 SFP(1Gbps) 2 SFP(2.5Gbps) |
2 SFP(1Gbps) 2 SFP(2.5Gbps) |
2 SFP(2.5Gbps) |
| BYPASS | – | – | – | – |  |
– |
| Switch Fabric | 26Gbps | 26Gbps | 30Gbps | 30Gbps | 30Gbps | 18Gbps |
| Throughput | 19.3Mpps | 19.3Mpps | 22.3Mpps | 22.3Mpps | 22.3Mpps | 13.3Mpps |
| Memory(RAM) | 128MB | 128MB | 128MB | 128MB | 128MB | 128MB |
| Flash Memory | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB |
| MAC Table | 8K | 8K | 8K | 8K | 8K | 8K |
| Jumbo Frame | 9.6K | 9.6K | 9.6K | 9.6K | 9.6K | 9.6K |
| Power Input | DC 12 ~ 56V | DC 48 ~ 56V | DC 12 ~ 56V | DC 48 ~ 56V | AC 100 ~ 240V | DC 12 ~ 56V |
| Power Consumption | AC 10.6W | AC 260W | AC 12.3W | AC 262W | AC 12.5W | AC 7.6W |
| PoE Capacity | – | PoE Max. 240W | – | PoE Max. 240W | – | – |
| Dual Power | |
|
|
|
|
|
| Installation Method | Wall or DinRail | Wall or DinRail | Wall Mount | Wall or DinRail | Rack Mount | DinRail Mount |
| Dimension(WxDxH) | 62 x 111 x 158 (mm) | 62 x 111 x 158 (mm) | 151 x 154 x 44 (mm) | 62 x 111 x 158 (mm) | 266 x 184 x 88 (mm) | 41 x 106 x 112 (mm) |
| STP/RSTP/MSTP 802.1Q VLAN IEEE 802.1 IGMP Snooping |
|
|
|
|
|
|
| ERPS, S-RING | |
|
|
|
|
|
