Switch SOLTECH truyền 2km SFC400-SCM6

Status:

In stock

100Mbps TP 2-Ports + 100Mbps Fiber 6-Ports, Multi-mode, SC Connector

Hotline: 0983 959 796

Miễn phí vận chuyển tại HN & HCM

Bảo hành chính hãng toàn quốc

Cam kết chính hãng 100%

1 đổi 1 nếu sản phẩm lỗi

1. Product Description

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Fiber Optic 100Mbps-FX, Ethernet 10/100Mbps-TX
Switch Operation/Connection status LED display
Auto MDI-X TP port, Auto Negotiation
Built-in power supply (110 ~ 220VAC, DC 48V option)
19”RACK installation

Operating temperature : 0℃ ~ 60℃

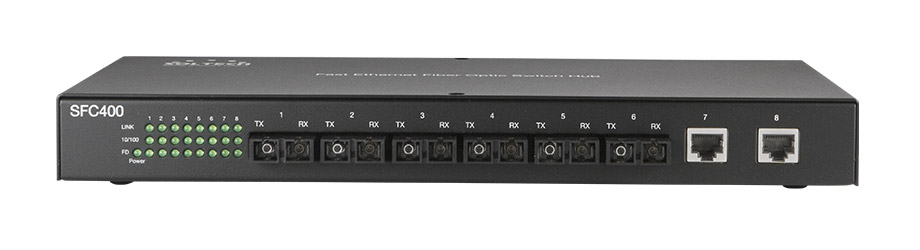

Description

100Mbps Fiber SC 6 Port 10/100Mbps TP 1 Ports unmanaged Multi mode Ethernet Switch

Ethernet switch that can transmit 100Mbps ethernet signal for 2km distance in SC multi mode. It is necessary for Fiber to UTP connection, and reliable transmission at wide bandwidth and long distance is possible.

sfc400scm6_detail_01

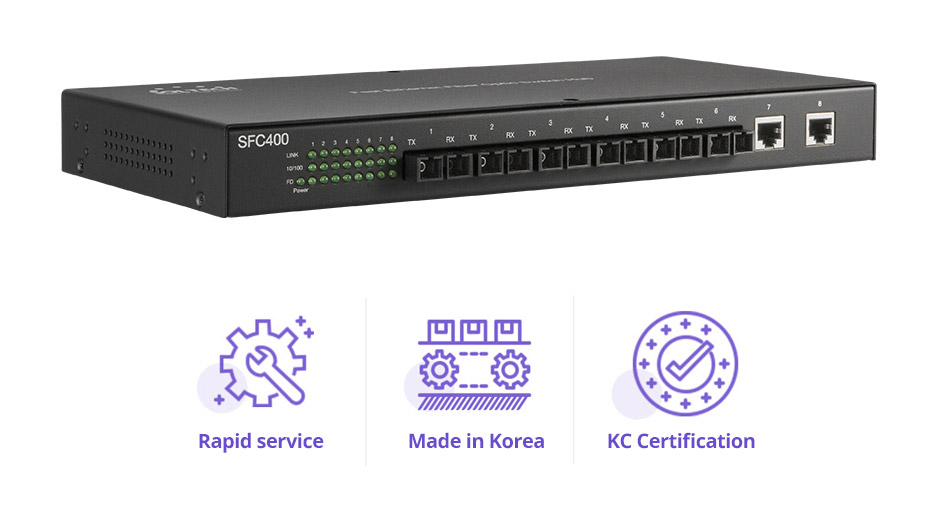

Quality verification completed 100% Made in Korea

100% Korea manufactured Ethernet switch. We have inspected all the processes from production to delivery, so please use it with confidence.

sfc400scm6_detail_02

Build network equipment based on-site environments

Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

sfc400scm6_detail_03

Product Details

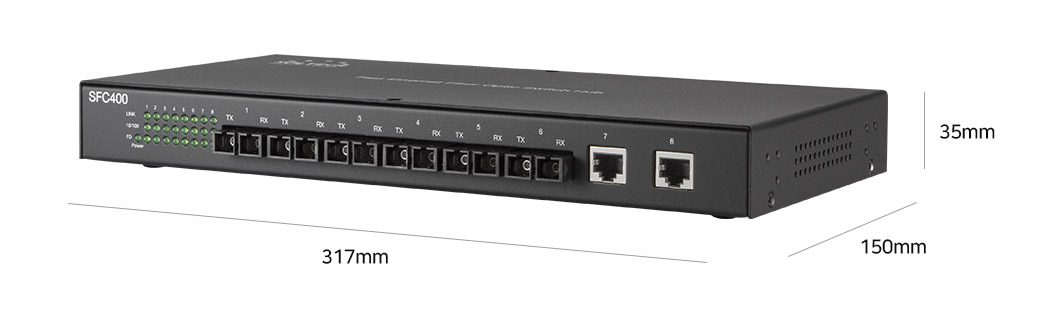

Dimensions

sfc400scm6_detail_04

Compare Product Lines

	SOLTECH2600	SFC300G	SFC400-SCS	SFC400-SCS2	SFC400-SCS4	SFC400-SCS6	SFC400-SCM	SFC400-SCM2	SFC400-SCM4	SFC400-SCM6
RJ45Port	24 TP(1Gbps)	2 TP(1Gbps)	7 TP(100Mbps)	6 TP(100Mbps)	4 TP(100Mbps)	2 TP(100Mbps)	7 TP(100Mbps)	6 TP(100Mbps)	4 TP(100Mbps)	2 TP(100Mbps)
SFP/SFP+ Port	2 SFP(1Gbps)	2 SFP(1Gbps)	1 SC(100Mbps)	2 SC(100Mbps)	4 SC(100Mbps)	6 SC(100Mbps)	1 SC(100Mbps)	2 SC(100Mbps)	4 SC(100Mbps)	6 SC(100Mbps)
Switch Fabric	52Gbps	8Gbps	1.6Gbps	1.6Gbps	1.6Gbps	1.6Gbps	1.6Gbps	1.6Gbps	1.6Gbps	1.6Gbps
Throughtput	38.6Mpps	5.9Mpps	1.2Mpps	1.2Mpps	1.2Mpps	1.2Mpps	1.2Mpps	1.2Mpps	1.2Mpps	1.2Mpps
Fiber Mode	–	–	Single-mode	Single-mode	Single-mode	Single-mode	Multi-mode	Multi-mode	Multi-mode	Multi-mode
Transmission Distance	–	–	20km	20km	20km	20km	2km	2km	2km	2km
MAC Table	8K	1K	1K	1K	2K	2K	1K	1K	2K	2K
Operating Temperature	0 ~ 40℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃	0 ~ 60℃
Power Input	AC 100 ~ 240V	DC 12V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V	AC 100 ~ 240V
Power Consumption	AC 8.7W	AC 8.2W	AC 5.6W	AC 7.8W	AC 13.6W	AC 13.8W	AC 5.6W	AC 7.8W	AC 13.6W	AC 13.8W
Installation Method	Rack Mount	Wall Mount	Rack Mount	Rack Mount	Rack Mount	Rack Mount	Rack Mount	Rack Mount	Rack Mount	Rack Mount
Dimension(WxDxH)	440x205x44(mm)	98x105x26(mm)	240x165x35(mm)	240x165x35(mm)	317x150x35(mm)	317x150x35(mm)	240x165x35(mm)	240x165x35(mm)

2. Specifications

Updating

3. Related Document
